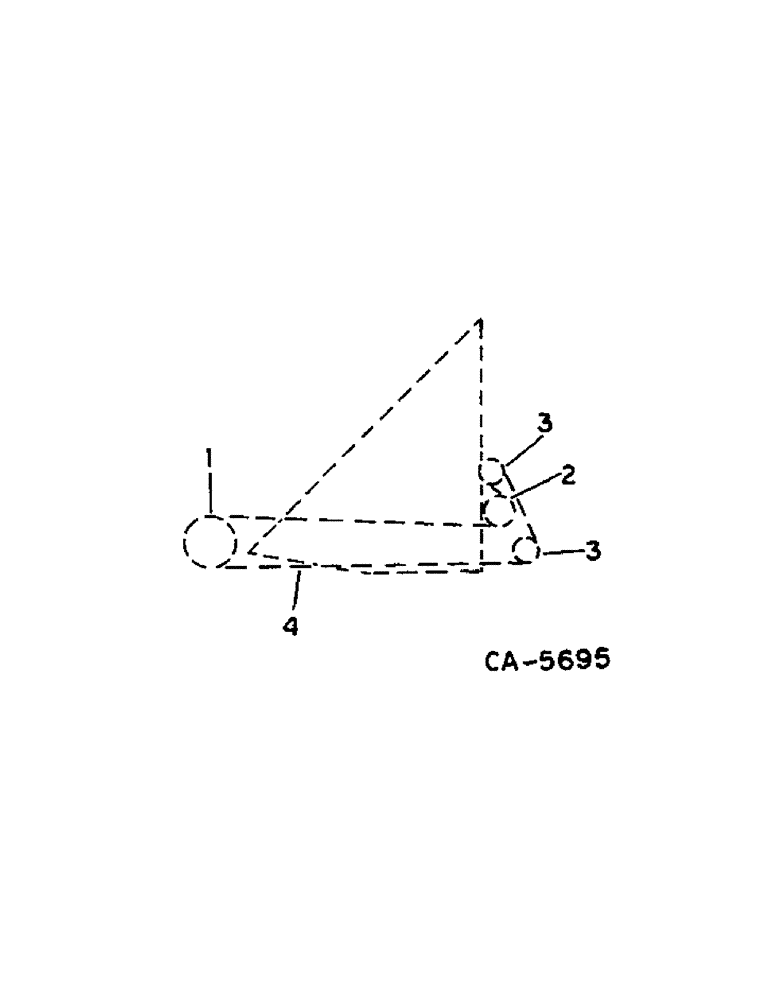

Запчасти Case IH 810 (C-04) - GRAIN HEADER, CHAIN AND SPROCKET DIAGRAM, WINDROW PICKUP - LEFT SIDE (58) - ATTACHMENTS/HEADERS

1

162251C1

SPROCKET ASSY.

SPROCKET, windrow driven, 22T

1шт.

1

162248C1

SPROCKET ASSY.

SPROCKET, windrow driven, 24T

1шт.

1

162249C1

SPROCKET ASSY.

SPROCKET, windrow driven, 27T

1шт.

1

162252C1

SPROCKET ASSY.

SPROCKET, windrow driven, 30T

1шт.

1

162250C1

DRIVE SPROCKET

SPROCKET, windrow driven, 37T, slow speed

1шт.

1

162254C1

SPROCKET ASSY.

SPROCKET, windrow driven, 47T, slow speed, refer to group 9 under windrow pickup LH drive

1шт.

2

197598C1

SPROCKET ASSY.

SPROCKET ASSY, windrow drive, 16T and 18T, refer to group 9 under windrow pickup LH drive

1шт.

3

565442R91

SPROCKET

windrow idler, 17T, refer to group 9 under windrow pickup LH drive

2шт.

4

CHAIN ASSY, windrow drive, refer to group 9 under windrow pickup LH drive

1шт.
