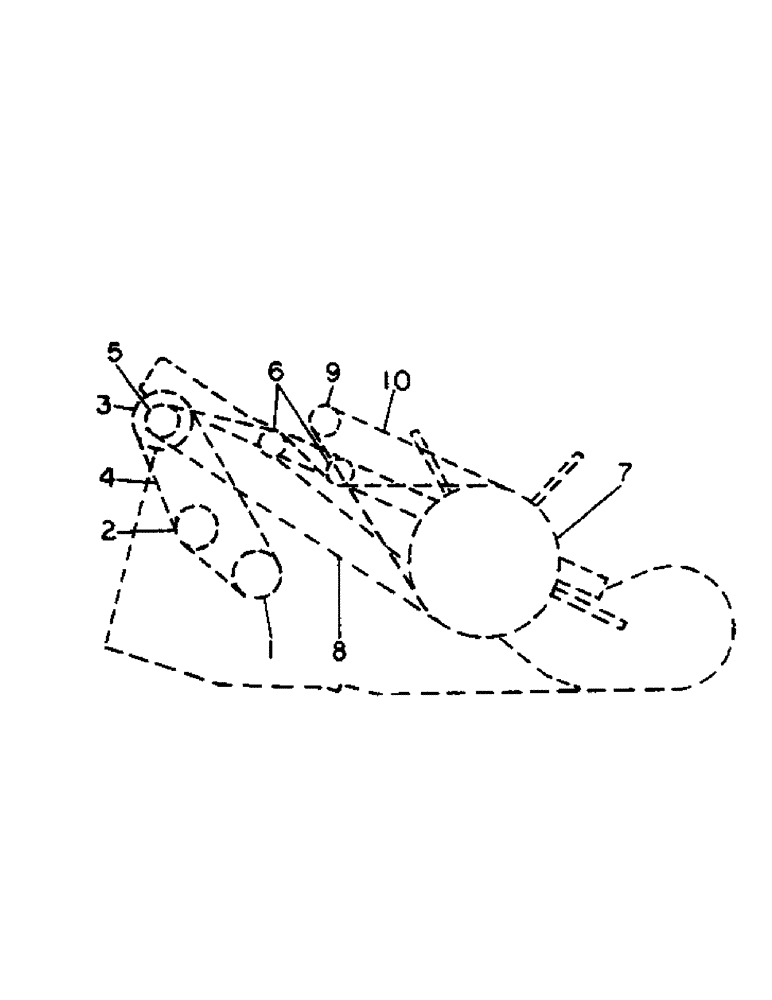

Запчасти Case IH 810 (C-04[A]) - GRAIN HEADER, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM - RIGHT SIDE (58) - ATTACHMENTS/HEADERS

1

177659C1

RETAINER

W/BEARING AND SPROCKET, refer to group 5 under header auger

1шт.

2

565442R91

SPROCKET

jackshaft idler, 17T, refer to group 6 under mechanical jackshaft drive

1шт.

3

179034C91

DRIVE SPROCKET

SPROCKET W/BUSHINGS, jackshaft, 8T and 31T, refer to group 6 under mechanical jackshaft drive

1шт.

4

CHAIN ASSY, jackshaft drive, refer to group 6 under mechanical jackshaft drive

1шт.

5

179037C1

DRIVE SPROCKET

SPROCKET, reel drive, 19T

1шт.

5

179038C1

DRIVE SPROCKET

SPROCKET, reel drive, 22T

1шт.

5

179039C1

DRIVE SPROCKET

SPROCKET, reel drive, 25T, refer to group 6 under mechanical reel drive

1шт.

6

559168R91

PTO

PULLEY, reel drive chain idler, 3-1/2 in. OD, 88.9mm OD, refer to group 6 under mechanical reel drive

2шт.

7

167623C1

SPROCKET ASSY.

SPROCKET, reel slip clutch, 29T

1шт.

7

168310C1

SPROCKET ASSY.

SPROCKET, reel driven, 50T, slow speed, refer to group 5 under pickup reel

1шт.

7

174536C1

SPROCKET ASSY.

SPROCKET ASSY, reel driven, 100T

1шт.

7

185517C1

DRIVE SPROCKET

SPROCKET ASSY, reel driven, 100T, refer to group 6 under hydraulic reel drive

1шт.

7

570032R1

SPROCKET ASSY.

SPROCKET, reel driven, 29T, refer to group 6 under mechanical reel drive

1шт.

8

CHAIN ASSY, reel drive, reel to group 6 under mechanical reel drive

1шт.

9

164961C2

SPROCKET ASSY.

SPROCKET, reel drive, 7T

1шт.

9

1305993C2

SPROCKET

ASSY, drive, 17T, refer to group 6 under hydraulic reel drive

1шт.

10

CHAIN ASSY, reel drive, refer to group 6 under hydraulic reel drive

1шт.
