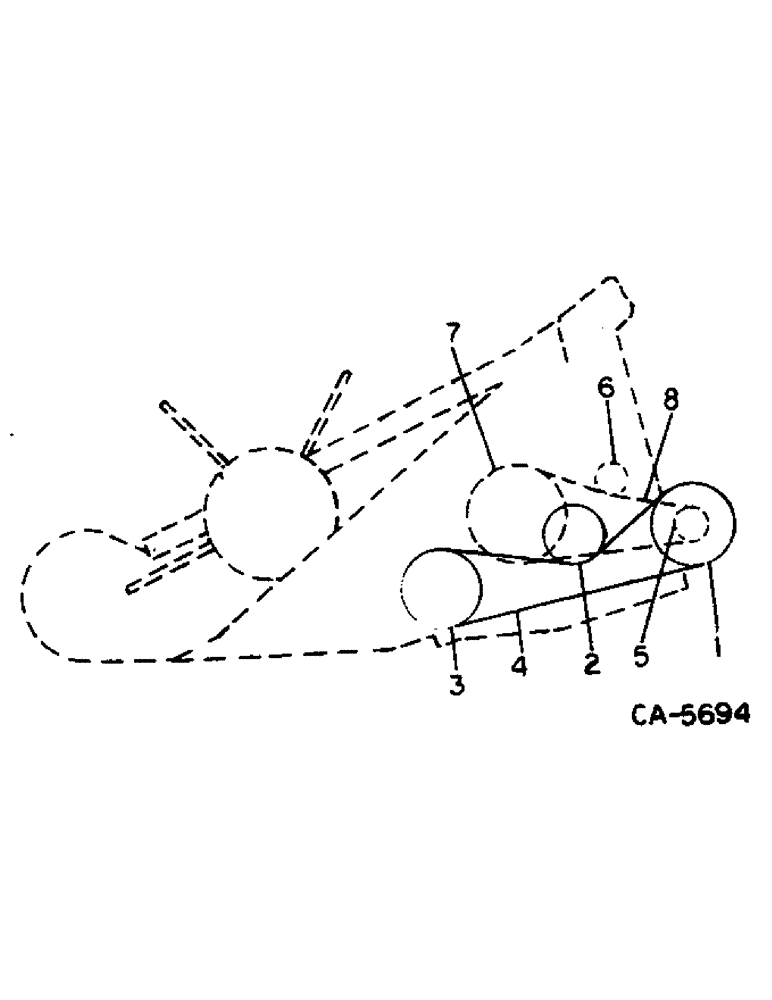

Запчасти Case IH 810 (C-03) - GRAIN HEADER, BELT, CHAIN, PULLEY AND SPROCKET DIAGRAM - LEFT SIDE (58) - ATTACHMENTS/HEADERS

1

184815C1

PULLEY ASSY.

PULLEY ASSY, knife drive, 10-1/2 in. OD 266.7mm OD, refer to group 4 under auger and knife drive

1шт.

2

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

W/BEARING, idler, 8-3/4 in. OD, 222.3mm OD, refer to group 4 under auger and knife drive

1шт.

3

178032C1

PULLEY

knife driven, 10-1/2 in. OD, 266.7mm OD, serial no. 12000 and below, also for hart carter floating cutter bar w/serial no. 12000 and below

1шт.

3

197611C2

X

PULLEY, knife driven, 10-1/2 in. OD, 266.7mm OD, serial no. 12001 and above, also for hart carter floating cutter bar w/serial no. 12001 thru 26000

1шт.

3

182074C1

PULLEY

knife driven, 500 CPM, 10-1/2 in. OD, 266.7mm OD, use w/1305084C1 shaft, serial no. 12001 and above, for floating cutter bar w/serial no. 26000 and below

1шт.

3

182029C1

PULLEY

knife driven, 600 CPM, 10-1/2 in. OD, 266.7mm OD, use w/ 1305084C1 shaft, for floating cutter bar w/serial no. 26001 and above, refer to group 4 under auger and knife drive

1шт.

3

189276C1

PULLEY

knife driven, 10.50 in. OD, 266.7mm OD, for hart carter floating cutter bar w/serial no. 26001 and above, refer to group 3 under counterbalance, drive and shield

1шт.

4

178019C1

BELT,0.879" W x 102.74" L

V-BELT , Knife drive, OC 0.879" W x 102.74" L

1шт.

4

187415C2

V-BELT,0.879" W x 109.87" L

Knife drive 0.879" W x 109.87" L

1шт.

4

552747R2

V-BELT

Knife drive, Refer to group 4 under auger and knife drive

1шт.

4

184796C1

BELT,0.897" W x 113.39" L

V-BELT , Knife drive, OC, Refer to group 3 under counter balance, Drive and shield 0.897" W x 113.39" L

1шт.

5

177965C1

SPROCKET ASSY.

SPROCKET, auger drive, 18T

1шт.

5

197598C1

SPROCKET ASSY.

SPROCKET, auger drive, 16 and 18T

1шт.

5

197991C2

SPROCKET ASSY.

SPROCKET, auger drive, 14T

1шт.

5

1300482C91

SPROCKET ASSY.

SPROCKET ASSY, auger drive, 22T, fast speed 235 RPM, parts accessories, not for use w/LH pickup drive, refer to group 4 under auger and knife drive

1шт.

6

571441R91

SPROCKET ASSY.,15T

SPROCKET, auger idler, 15T, refer to group 4 under auger and knife drive

1шт.

7

177966C2

SPROCKET ASSY.

SPROCKET W/BUSHING, auger driven, 14T, refer to group 4 under auger and knife drive

1шт.

8

CHAIN ASSY, auger drive, refer to group 4 under auger and knife drive

1шт.
