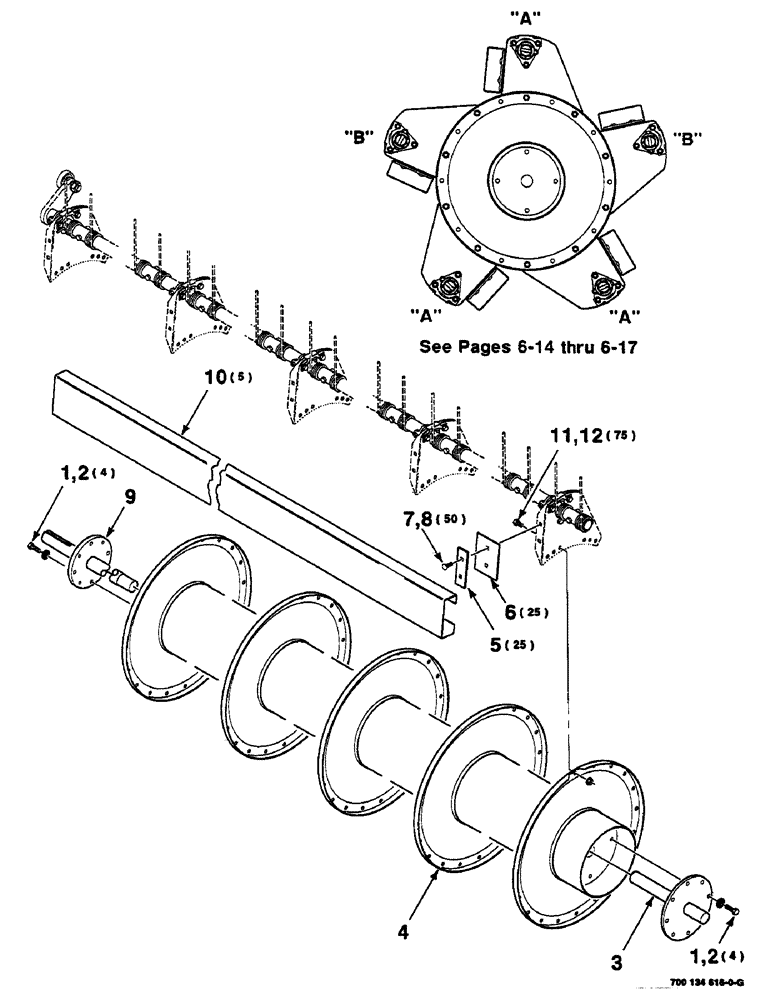

Запчасти Case IH 625 (6-04) - REEL ASSEMBLY, 18 FOOT (58) - ATTACHMENTS/HEADERS

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

3

700110207

SHAFT

WA - left

1шт.

4

700134815

REEL

WA - 18 foot

1шт.

5

700114543

RETAINER

25шт.

6

700114544

LARGE PLATE

PLATE - reel

25шт.

7

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

50шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

50шт.

9

700122466

SHAFT

WA - right

1шт.

10

700134818

BAT

- reel, 18 foot

5шт.

11

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

75шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

75шт.
