Запчасти Case IH 625 (9-10) - REEL SPIDER HEAVY CROP KIT, 14 AND 16 FOOT, HK60575 REEL SPIDER HEAVY CROP KIT COMPLETE (88) - ACCESSORIES

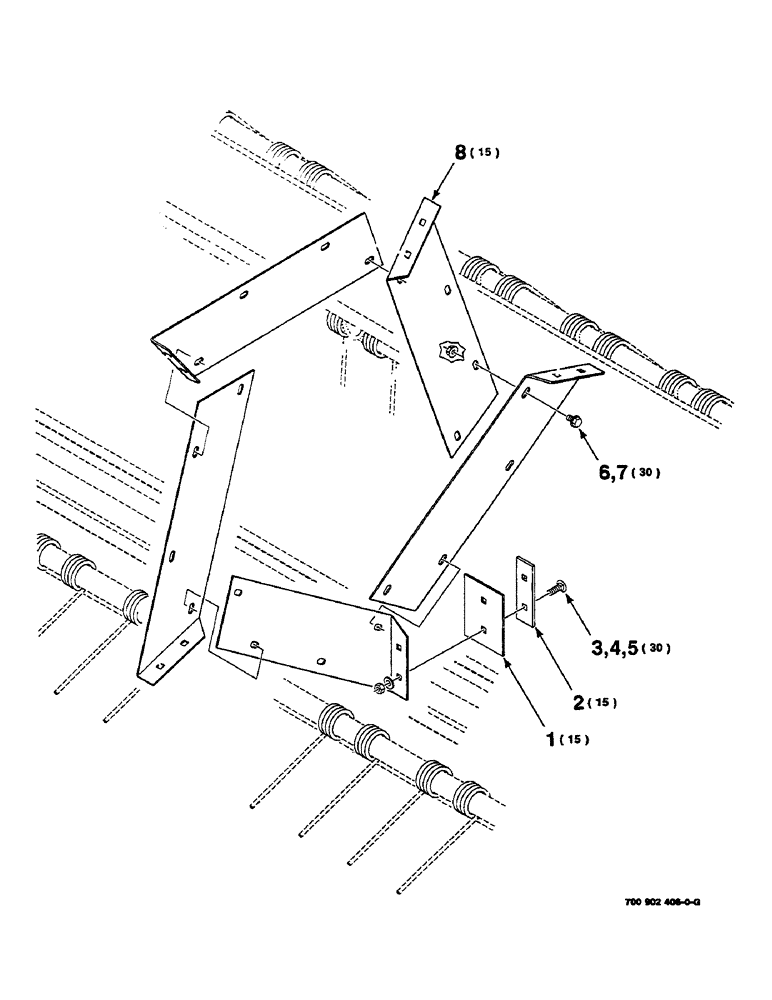

Схема запчастей Case IH 625 - (9-10) - REEL SPIDER HEAVY CROP KIT, 14 AND 16 FOOT, HK60575 REEL SPIDER HEAVY CROP KIT COMPLETE (88) - ACCESSORIES

Артикул

Название

Примечание

Количество

HK60575

REEL SPIDER HEAVY CROP KIT COMPLETE

1шт.

1

700114544

LARGE PLATE

PLATE

15шт.

2

700114543

RETAINER

15шт.

3

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

30шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

5

425-105

NUT,5/16"-18, G5

30шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

30шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

30шт.

8

700121769

SUPPORT

- spider

15шт.

Выбрано товаров: 9
