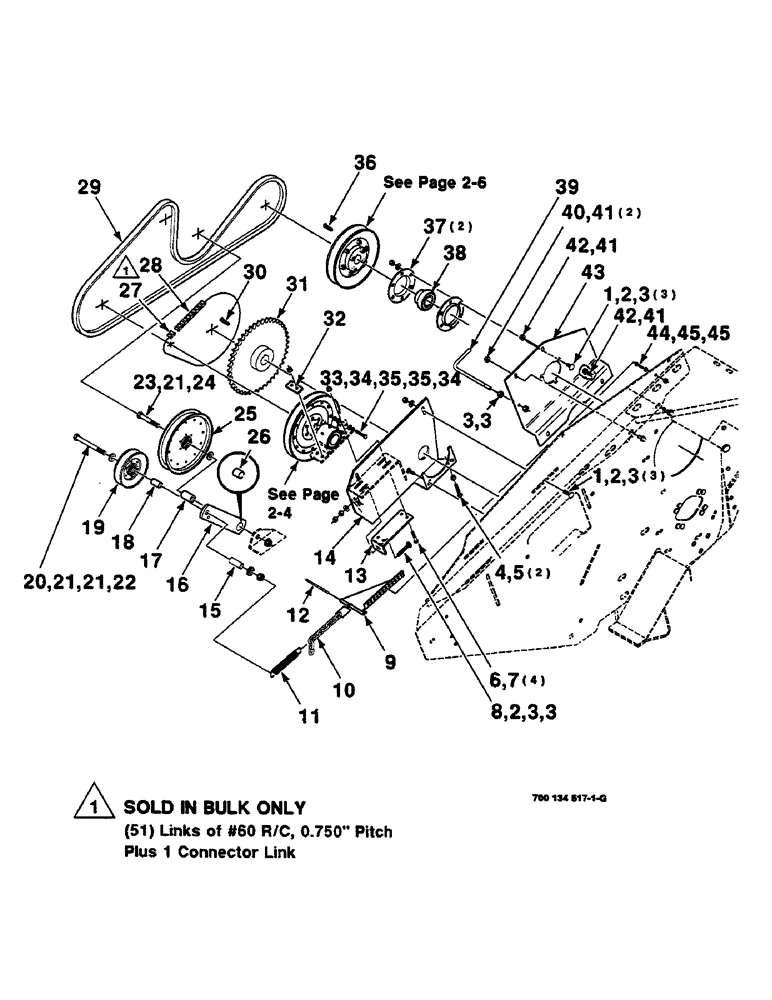

Запчасти Case IH 625 (2-02) - REEL DRIVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

6шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

3

425-106

NUT,3/8"-16, Cl 5

10шт.

4

113-235

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5, Full Thd

2шт.

5

425-146

JAM NUT,3/8" - 16, Gr 5

2шт.

6

26-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8

5/16-18 x 1-1/2 C GR8 NP

4шт.

7

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

8

7770472

BOLT

3/8-16 X 2-1/2 FTRHSNB

1шт.

9

700134724

TENSIONER

- reel

1шт.

10

700134773

CHAIN (AG)

CHAIN

1шт.

11

7758220

SPRING

- extension

1шт.

12

6617922

PIN

- hinge

1шт.

13

700121000

BRACKET

ANGLE

1шт.

14

700134888

MOUNTING PARTS

MOUNTING WA - reel, right

1шт.

15

700114572

TUBE,19.05 mm OD, 43 mm Length

- pivot

1шт.

16

700114727

ARM

ASSEMBLY (Includes Item 26)

1шт.

17

1661945

SPACER

1шт.

18

6167472

SPACER

1шт.

19

053553

PULLEY

SHEAVE - idler

1шт.

20

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

1шт.

21

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

3шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

23

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1/2-13 X 3-1/4 C

1шт.

24

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

25

54510

FRONT IDLER

IDLER - flat

1шт.

26

740217

BUSHING

1шт.

27

241-1416

LINK

- connector, #60 R/C

1шт.

28

7086002

CHAIN (AG)

CHAIN - roller, #60 (10 foot bulk)

1шт.

29

55574

BELT

V-BELT

1шт.

30

61895

BUCKET TOOTH KEY

5/16 X 2-1/4 KEY - gib

1шт.

31

700114718

SPROCKET

WA - 44 tooth

1шт.

32

700116223

COVER PLATE

PLATE

1шт.

33

7772858

BOLT,Hex, 5/16" x 1 3/4", Gr 5

5/16-18 X 1-3/4 FTC

1шт.

34

425-105

NUT,5/16"-18, G5

2шт.

35

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

36

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 KEY - gib

1шт.

37

825620C1

RETAINER

- bearing

2шт.

38

710004

PTO SHAFT

- spherical

1шт.

39

700134722

GUIDE

- right

1шт.

40

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

41

231-5146

FLANGE NUT,3/8"-16

4шт.

42

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

2шт.

43

700134725

MOUNTING PARTS

MOUNTING - auger, bearing

1шт.

44

61-32520

HEX SOC SCREW,1/4"-20 x 1 1/4"

1/4-20 X 1-1/4 HSHCS SPL

1шт.

45

425-104

NUT,1/4"-20, Cl 5

2шт.
