Запчасти Case IH 625 (7-32) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, 16 FOOT (58) - ATTACHMENTS/HEADERS

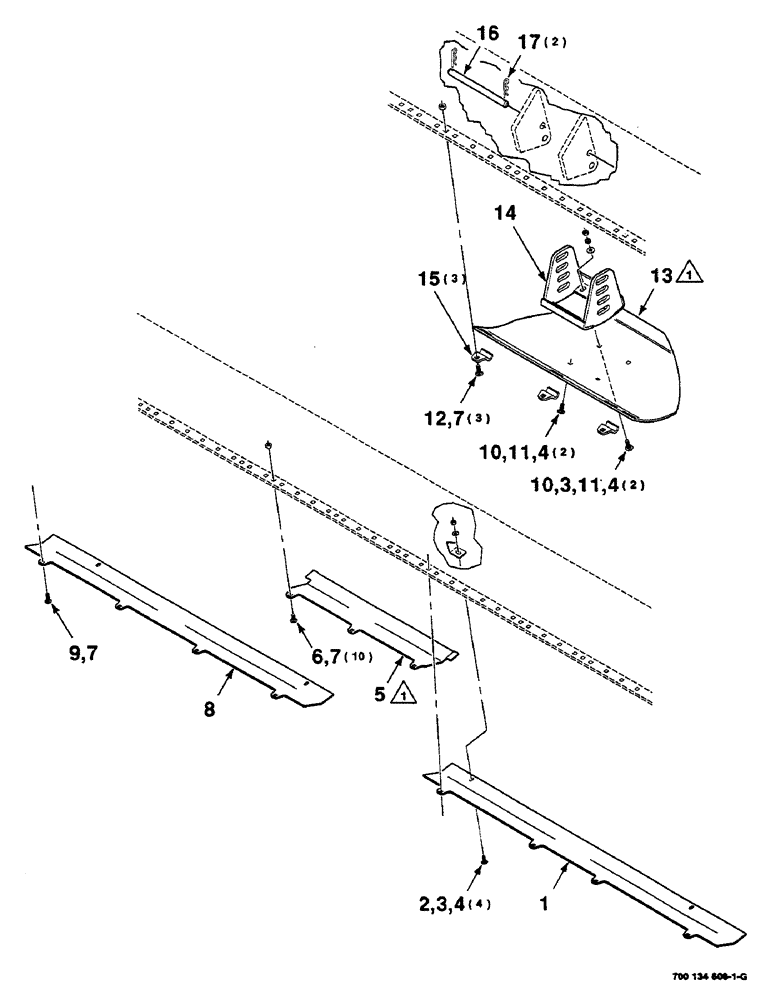

Схема запчастей Case IH 625 - (7-32) - SKID SHOE, CENTER, AND WEAR PLATE ASSEMBLY, 16 FOOT (58) - ATTACHMENTS/HEADERS

Артикул

Название

Примечание

Количество

1

700114700

PLATE

WEAR PLATE - left

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

6шт.

4

425-106

NUT,3/8"-16, Cl 5

8шт.

5

700120999

WEAR PLATE

- center

1шт.

6

434-716

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1", Gr 5

7/16-14 X 1 RHSNB

10шт.

7

425-107

NUT,7/16"-14, G5

14шт.

8

700114701

PLATE

WEAR PLATE - right

1шт.

9

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

1шт.

10

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/8-16 X 1-1/4 PLOW BOLT

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

3шт.

13

700115322

SHOE

- skid, center

1шт.

14

700110220

SUPPORT

- adjustable

1шт.

15

6453799

CLIP

- shoe, skid

3шт.

16

700110222

PIN

1шт.

17

S120261

PIN

HAIRPIN COTTER

2шт.

Выбрано товаров: 17
