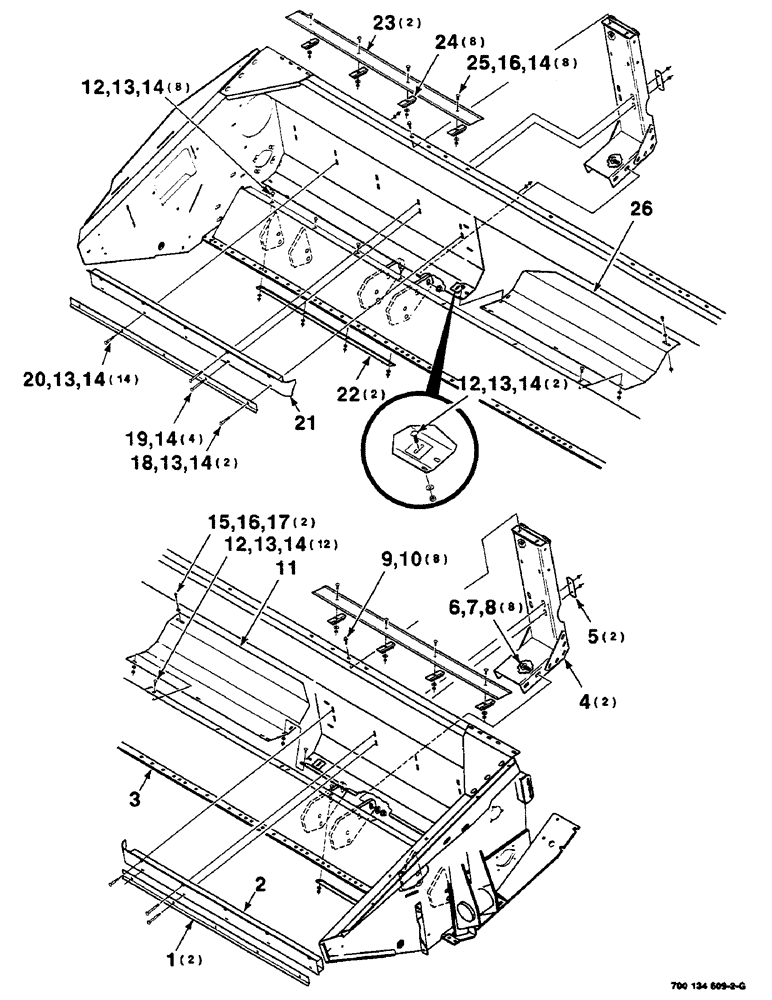

Запчасти Case IH 625 (7-28) - AUGER PAN AND STRIPPER ASSEMBLY, 18 FOOT (58) - ATTACHMENTS/HEADERS

1

700134708

STRIPPER

ANGLE - stripper

2шт.

2

700134697

STRIPPER

WA - left

1шт.

3

700134647

BRACE

HEADER WA - 18'

1шт.

4

700134631

SUPPORT

WA

2шт.

5

700134910

STRAP

2шт.

6

700710982

BOLT

5/8-11 X 2 HFS GR8

8шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

8

7704919

FLANGE NUT,Flg, 5/8"-11, G8

5/8-11 HFN GR8

8шт.

9

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

8шт.

10

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

11

700124320

PAN

- auger, left

1шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

22шт.

13

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

38шт.

14

425-105

NUT,5/16"-18, G5

50шт.

15

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

16

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

10шт.

17

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

18

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

2шт.

19

7770407

BOLT

5/16-18 X 4 RHSNB

4шт.

20

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

14шт.

21

700134701

STRIPPER

WA - right

1шт.

22

700136369

STRAP

- retainer

2шт.

23

700134707

PAN

STRAP

2шт.

24

700136368

CLIP

- retainer

8шт.

25

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

8шт.

26

700124319

PAN

- auger, right

1шт.
