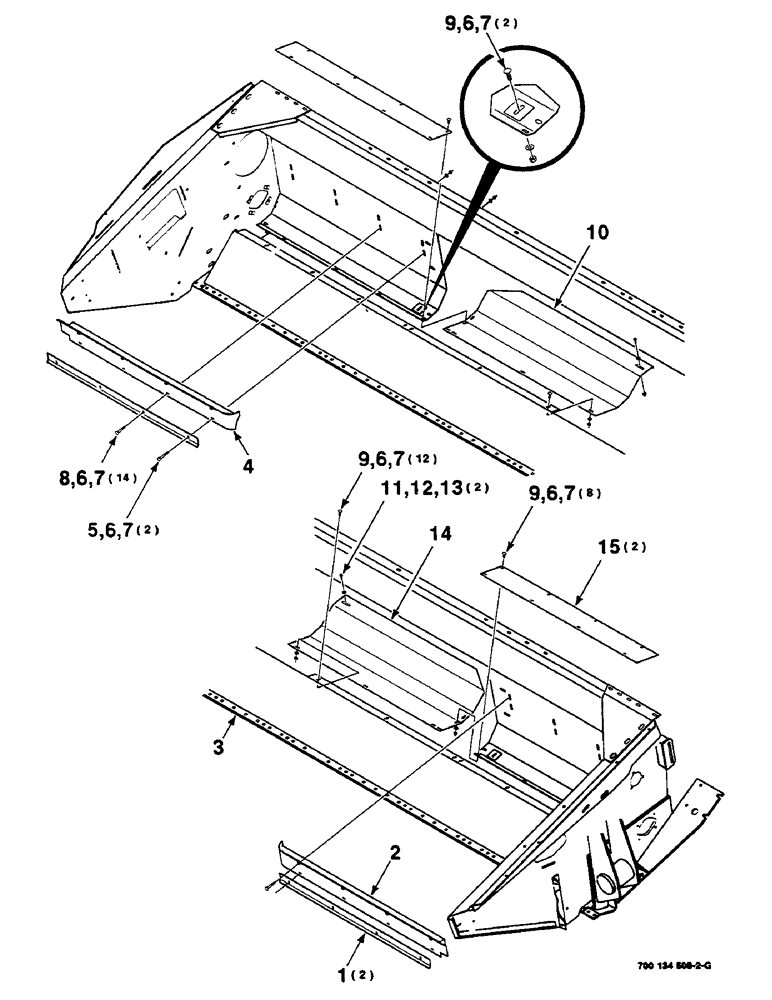

Запчасти Case IH 625 (7-26) - AUGER PAN AND STRIPPER ASSEMBLY, 16 FOOT (58) - ATTACHMENTS/HEADERS

1

700114693

ANGLE BAR

ANGLE - stripper

2шт.

2

700134691

STRIPPER

WA - left

1шт.

3

700134646

BRACE

HEADER WA

1шт.

4

700134695

STRIPPER

WA - right

1шт.

5

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

52шт.

7

425-105

NUT,5/16"-18, G5

52шт.

8

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

28шт.

9

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

22шт.

10

700124319

PAN

- auger, right

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

12

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

14

700124320

PAN

- auger, left

1шт.

15

700124316

STRAP

2шт.
