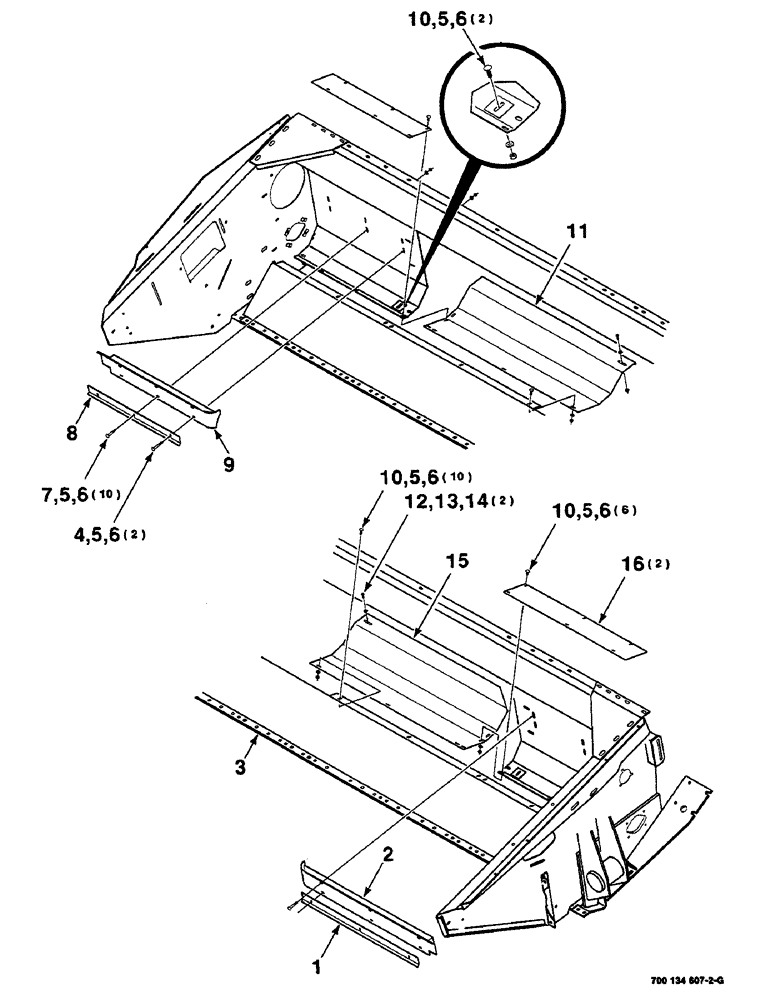

Запчасти Case IH 625 (7-24) - AUGER PAN AND STRIPPER ASSEMBLY, 14 FOOT (58) - ATTACHMENTS/HEADERS

1

700109703

ANGLE

- stripper, left

1шт.

2

700134686

STRIPPER

WA - left

1шт.

3

700134645

BRACE

HEADER WA

1шт.

4

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

5/16-18 X 2-1/2 RHSNB

2шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

30шт.

6

425-105

NUT,5/16"-18, G5

30шт.

7

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

5/16-18 X 2-1/4 RHSNB

10шт.

8

700109704

ANGLE

- stripper, right

1шт.

9

700134689

STRIPPER

WA - right

1шт.

10

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

18шт.

11

700124319

PAN

- auger, right

1шт.

12

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

13

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

2шт.

14

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

2шт.

15

700124320

PAN

- auger, left

1шт.

16

700124326

STRAP

2шт.
