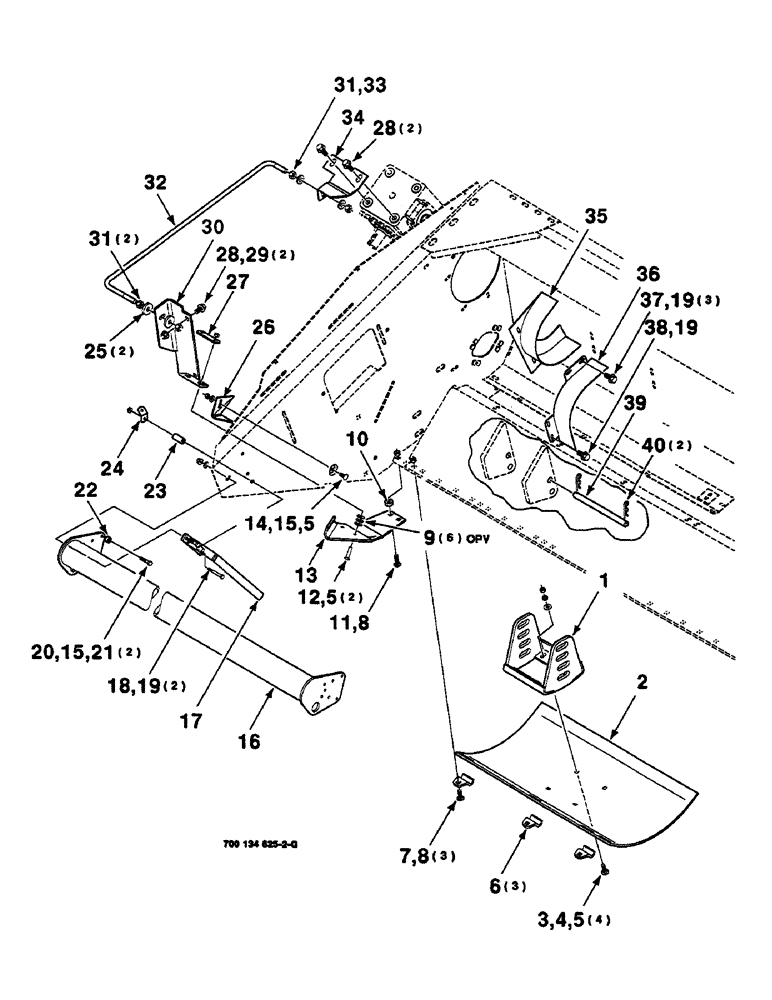

Запчасти Case IH 625 (7-22) - LEAN BAR, DIVIDER AND SKID SHOE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

700110220

SUPPORT

WA - skid shoe

1шт.

2

700110219

SKID PLATE

SKID SHOE

1шт.

3

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/16-18 X 1-1/4 PLOW BOLT

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

425-106

NUT,3/8"-16, Cl 5

7шт.

6

6453799

CLIP

3шт.

7

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

3шт.

8

425-107

NUT,7/16"-14, G5

4шт.

9

495-21044

WASHER,3/8"

6шт.

10

700110561

SPACER

1шт.

11

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

12

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PLOW BOLT

2шт.

13

700114711

DIVIDER

- right

1шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

16

700124285

BAR

LEAN BAR (14 foot)

1шт.

700124286

BAR

LEAN BAR (16 foot)

1шт.

700134816

BAR

LEAN BAR (18 foot)

1шт.

17

700111947

DEFLECTOR

STRAP WA - deflector

1шт.

18

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

20

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

2шт.

21

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

22

6605752

SPACER

1шт.

23

6828107

TUBE,10.57 mm ID, 19.05 mm OD, 40 mm Length

1шт.

24

700134873

MOUNTING PARTS

MOUNT - rod

1шт.

25

6223374

WASHER

2шт.

26

700136289

SHOE

- divider, right

1шт.

27

700114716

COVER PLATE

STRAP - reinf

1шт.

28

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

4шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

30

700134719

SUPPORT

- divider shoe, right

1шт.

31

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

32

700134721

GUIDE

- shield, right

1шт.

33

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

34

700134871

MOUNTING PARTS

MOUNT - rail

1шт.

35

700134714

SHIELD

WRAPPER WA - upper

1шт.

36

700134711

SHIELD

WA

1шт.

37

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

38

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

39

700110222

PIN

1шт.

40

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.
