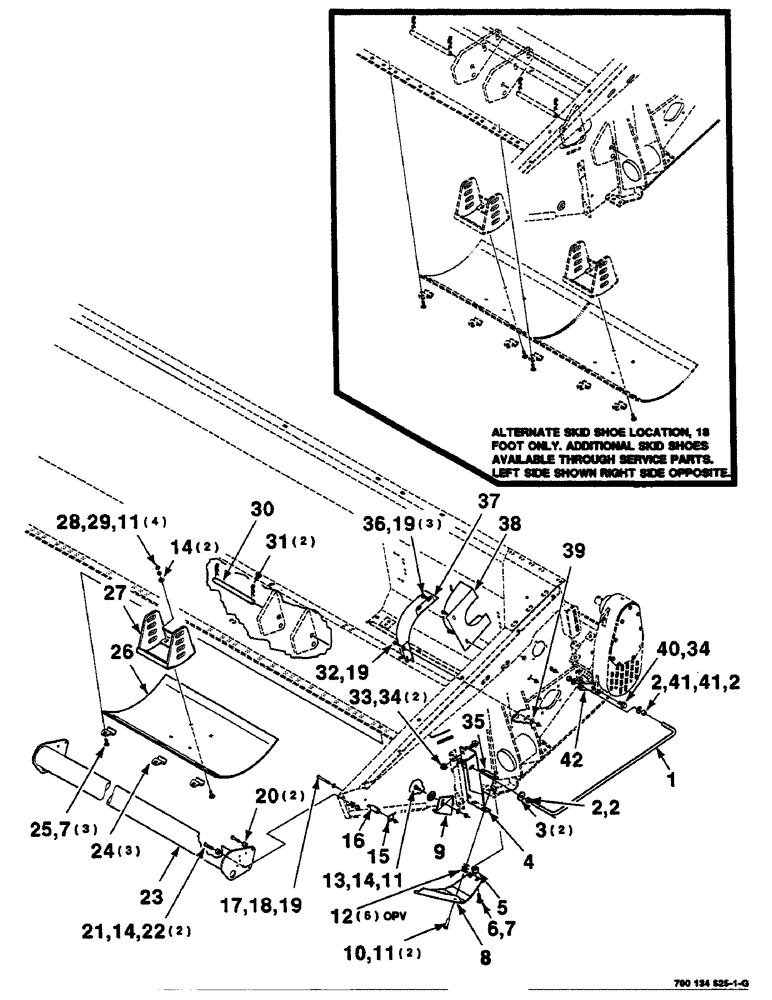

Запчасти Case IH 625 (7-20) - LEAN BAR, DIVIDER AND SKID SHOE ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700134720

GUIDE

- shield, left

1шт.

2

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

3

6223374

WASHER

2шт.

4

700134717

SUPPORT

- divider shoe, left

1шт.

5

700114717

SPACER

1шт.

6

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

1шт.

7

425-107

NUT,7/16"-14, G5

4шт.

8

700114709

DIVIDER

- left

1шт.

9

700136288

SHOE

- divider, left

1шт.

10

419-2624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 PLOW BOLT

2шт.

11

425-106

NUT,3/8"-16, Cl 5

7шт.

12

495-21044

WASHER,3/8"

6шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

15

700134873

MOUNTING PARTS

MOUNT - rod

1шт.

16

6828107

TUBE,10.57 mm ID, 19.05 mm OD, 40 mm Length

1шт.

17

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

18

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

5шт.

20

6605752

SPACER

2шт.

21

700711084

BOLT

3/8-16 X 1-1/2 HFS GR8

2шт.

22

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

23

700124285

BAR

LEAN BAR (14 foot)

1шт.

700124286

BAR

LEAN BAR (16 foot)

1шт.

700134816

BAR

LEAN BAR (18 foot)

1шт.

24

6453799

CLIP

3шт.

25

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1 1/4", G5

3шт.

26

700110219

SKID PLATE

SKID SHOE

1шт.

27

700110220

SUPPORT

WA - skid shoe

1шт.

28

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

3/16-18 X 1-1/4 PLOW BOLT

4шт.

29

492-11038

LOCK WASHER,3/8"

4шт.

30

700110222

PIN

1шт.

31

S120261

PIN

.148 WIRE HAIR PIN COTTER

2шт.

32

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

33

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

2шт.

34

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

3шт.

35

700114716

COVER PLATE

STRAP - reinf

1шт.

36

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

3шт.

37

700134711

SHIELD

WA

1шт.

38

700134714

SHIELD

WRAPPER WA - upper

1шт.

39

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

40

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

1/2-13 X 1-1/4 HFS GR8

1шт.

41

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

42

700134872

STRAP

1шт.
