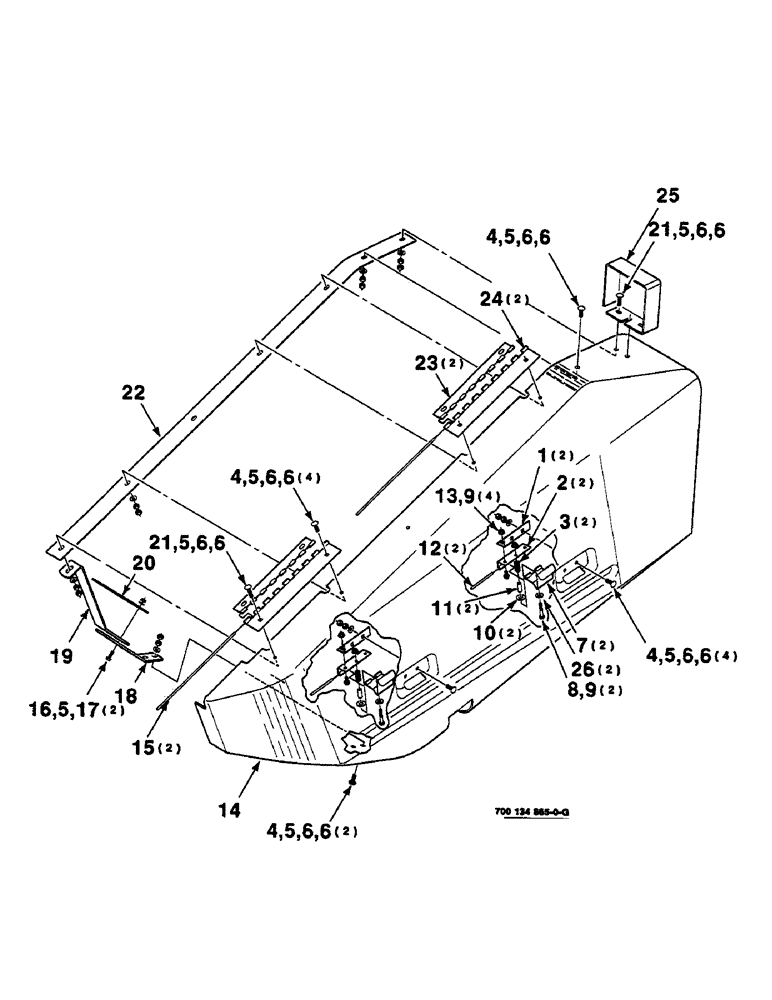

Запчасти Case IH 625 (7-16) - SHIELD ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

700134765

ANGLE

- latch

2шт.

2

700134870

MOUNTING PARTS

MOUNT - handle

2шт.

3

700716253

SPRING

- compression

2шт.

4

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

11шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

15шт.

6

425-105

NUT,5/16"-18, G5

26шт.

7

700134869

HANDLE

2шт.

8

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

9

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

11

700134764

SPACER

2шт.

12

700114528

PIN

- hinge

2шт.

13

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

14

700715775

SHIELD

- left

1шт.

15

301408

PIN

- hinge

2шт.

16

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

18

700134862

STRAP

- lower

1шт.

19

700134861

STRAP

- upper, left

1шт.

20

700134875

PLATE

- anchor

1шт.

21

433-520

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 RHSNB

2шт.

22

700134856

STRAP

- left

1шт.

23

700134854

HINGE

- left

2шт.

24

700134855

HINGE

- left

2шт.

25

700134850

GUARD

- flasher

1шт.

26

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.
