Запчасти Case IH 625 (7-08) - SHIELD ASSEMBLY, LEFT, 16 FOOT (58) - ATTACHMENTS/HEADERS

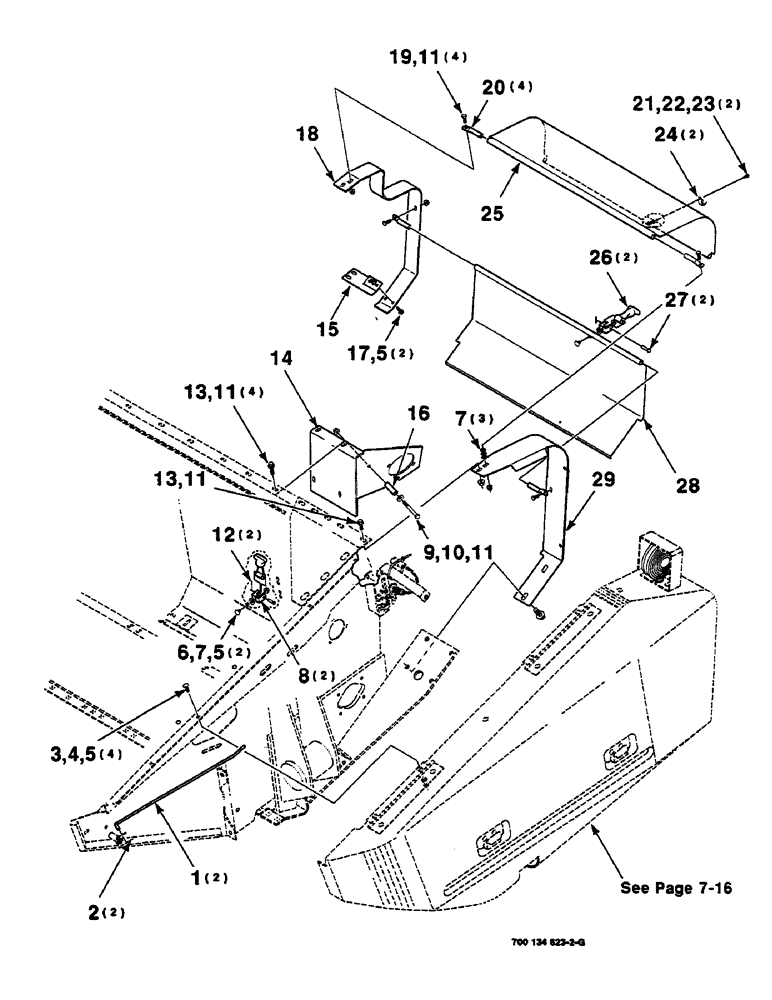

Схема запчастей Case IH 625 - (7-08) - SHIELD ASSEMBLY, LEFT, 16 FOOT (58) - ATTACHMENTS/HEADERS

Артикул

Название

Примечание

Количество

1

700134880

ROD

- hanger, left

2шт.

2

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

3

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

8шт.

6

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

2шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

8

776674

SUPPORT

BRACHET - anchor

2шт.

9

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

10

496-21047

WASHER

7/16 HARDENED PLAIN WASHER

1шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

10шт.

12

432-68

COTTER PIN,3/32" x 1/2"

PIN, SPLIT (COTTER), 3/32" x 1/2"

2шт.

13

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

5шт.

14

700134831

SUPPORT

WA - motor

1шт.

15

700134853

SUPPORT

- lower

1шт.

16

700111525

TUBE,15.88 mm OD, 48.5 mm Length

TUBING

1шт.

17

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

18

700134852

SHIELD

WRAPPER - inner

1шт.

19

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

20

6575484

PIN

4шт.

21

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR60M

2шт.

22

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

23

225-14110

NUT,#10-24

2шт.

24

8722910

BRACKET

2шт.

25

700134834

SHIELD

- rear left

1шт.

26

494307C1

LATCH

HOOK - rubber

2шт.

27

141-13

CLEVIS PIN,1/4" x 1.594"

1/4 X 1-1/2 CLEVIS PIN

2шт.

28

700134835

SHIELD

- rear left

1шт.

29

700134851

SHIELD

WRAPPER - outer

1шт.

Выбрано товаров: 29
