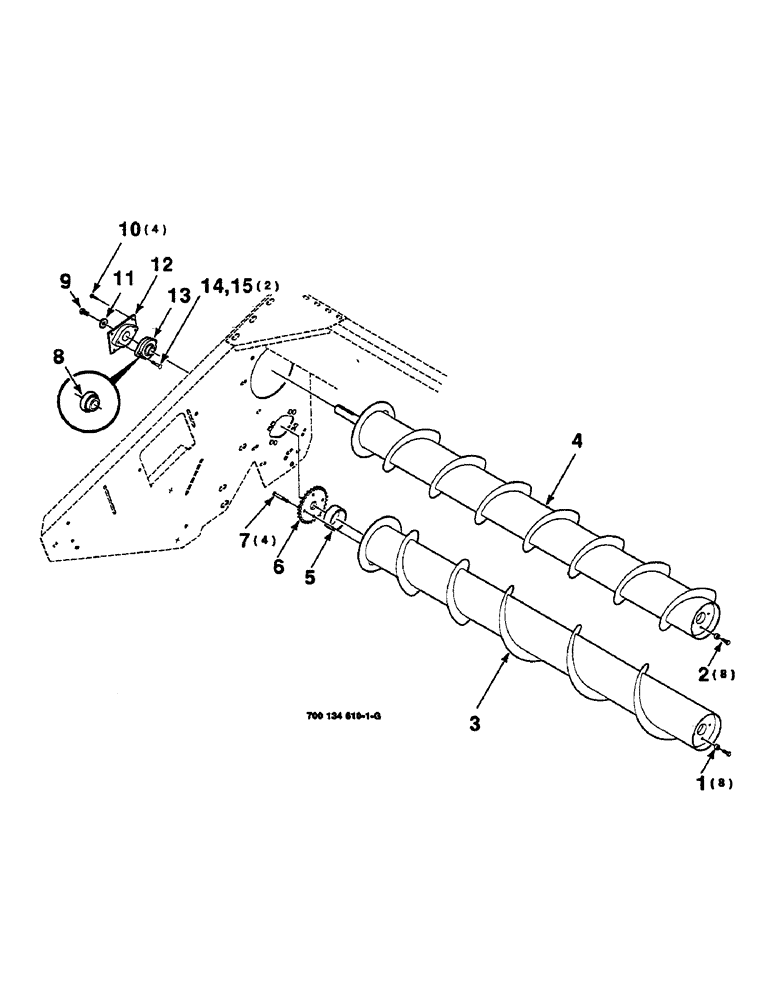

Запчасти Case IH 625 (6-20) - AUGER ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

1

700134794

BUSHING

8шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

3

700134896

AUGER

WA - lower right (14 foot)

1шт.

700134898

AUGER

WA - lower right (16 foot)

1шт.

700134777

AUGER

WA - lower right (18 foot)

1шт.

4

700134897

AUGER

WA - upper right (14 foot)

1шт.

700134899

AUGER

WA - upper right (16 foot)

1шт.

700134784

AUGER

WA - upper right (18 foot)

1шт.

5

700114589

SPACER

1шт.

6

700114539

SPROCKET

- 50A28

1шт.

7

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

8

700708095

SPHERICAL BEARING

BEARING

1шт.

9

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

10

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

4шт.

11

6165138

WASHER

WASHER - special

1шт.

12

700118684

SUPPORT

MOUNTING WA

1шт.

13

700708582

BEARING ASSY,28.58mm ID

HOUSING - bearing (Includes item 8)

1шт.

14

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

15

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.
