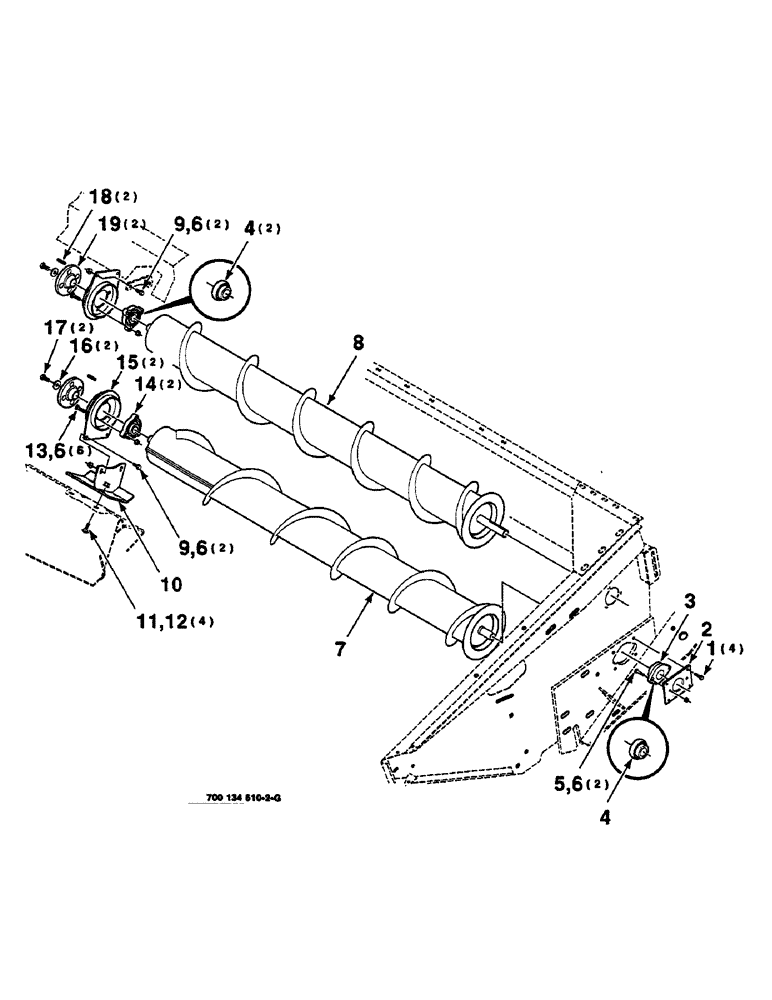

Запчасти Case IH 625 (6-18) - AUGER ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS

1

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

4шт.

2

700118684

SUPPORT

MOUNTING WA

1шт.

3

700708582

BEARING ASSY,28.58mm ID

HOUSING - bearing (Includes item 4)

1шт.

4

700708095

SPHERICAL BEARING

BEARING

3шт.

5

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 X 2 RHSNB

2шт.

7

700134768

AUGER

WA - lower left (14 foot)

1шт.

700134760

AUGER

WA - lower left (16 foot)

1шт.

700134770

AUGER

WA - lower left (18 foot)

1шт.

8

700134769

AUGER

WA - upper left (14 foot)

1шт.

700134763

AUGER

WA - upper left (16 foot)

1шт.

700134780

AUGER

WA - upper left (18 foot)

1шт.

9

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

10

700134790

MOUNTING PARTS

MOUNTING WA - auger

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.

12

329-286

FLANGE NUT,Flg, 3/8"-16, G8

4шт.

13

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

6шт.

14

700131499

BEARING ASSY,28.58mm ID

BEARING - assembly (Includes item 4)

2шт.

15

700134787

MOUNTING PARTS

MOUNT WA - auger, center

2шт.

16

6165138

WASHER

WASHER - special

2шт.

17

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

18

61119

KEY

1/4 X 2.0 KEY

2шт.

19

700134786

HUB

- support

2шт.

if dealer is working on center support section for lh auger # 700134769 the woodruff key needed is 118000 per marv hood . kl 10/8/98

1шт.
