Запчасти Case IH 625 (6-14) - TINE TUBE ASSEMBLY, 18 FOOT, TINE TUBE ASSEMBLY A (58) - ATTACHMENTS/HEADERS

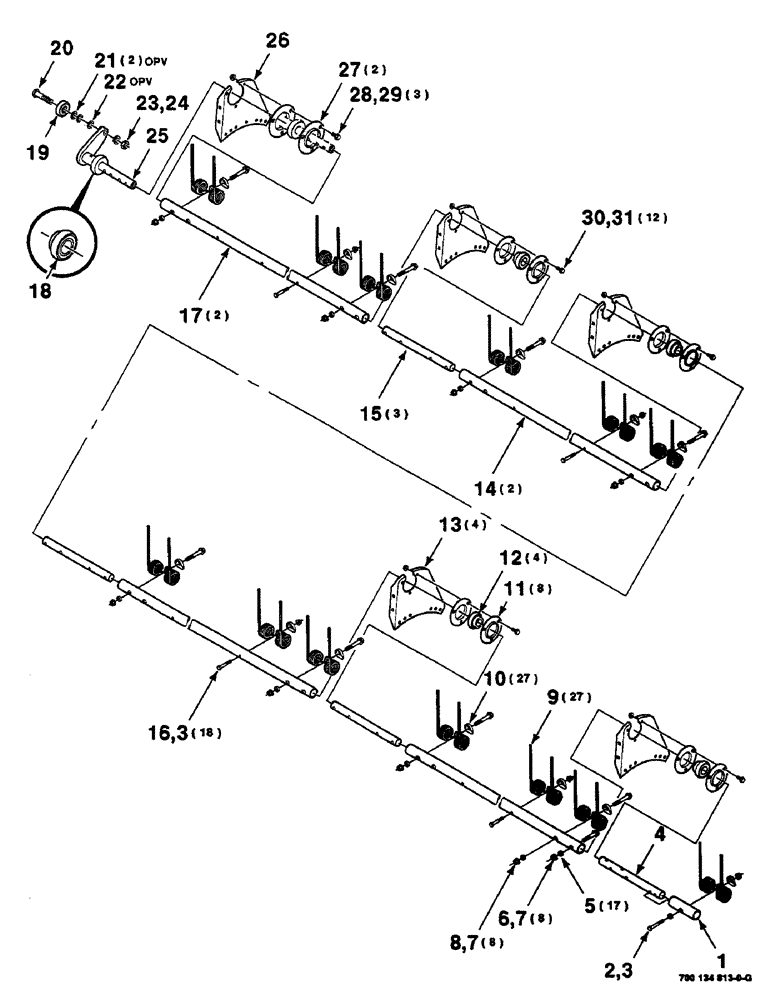

Схема запчастей Case IH 625 - (6-14) - TINE TUBE ASSEMBLY, 18 FOOT, TINE TUBE ASSEMBLY A (58) - ATTACHMENTS/HEADERS

Артикул

Название

Примечание

Количество

1

700134803

TUBE,33.32 mm OD, 110 mm Length

1шт.

2

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Hex, 5/16-18 X 2-1/4 C

1шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

19шт.

4

700134800

SHAFT

- left

1шт.

5

700134804

SPACER

17шт.

6

700711132

BOLT

3/8-16 X 2 HFS GR8

8шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

16шт.

8

7702079

SCREW

3/8-16 X 2-1/2 HFS GR8

8шт.

9

7895642

TINE

27шт.

10

261024

CLIP

- tine

27шт.

11

50567

RATCHET

- bearing

8шт.

12

50302

SPHERICAL BEARING,25.4 mm ID x 52 mm OD x 30.96 mm

- spherical

4шт.

13

700134806

SUPPORT

- bearing

4шт.

14

700134811

TUBE,1.016" ID, 1.312" OD, 1162.5 mm Length

- tine, center

2шт.

15

700134799

SHAFT

- center

3шт.

16

426-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

5/16-18 X 2 C GR8

18шт.

17

700134802

TUBE,1.016" ID, 1.312" OD, 1349.5 mm Length

- tine, end

2шт.

18

8050650

BEARING, BALL

BEARING - spherical

1шт.

19

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

- cylindrical

1шт.

20

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

5/8-18 X 2-1/4 C SPECIAL

1шт.

21

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.

22

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

425-1510

JAM NUT,Jam, 5/8"-18, G5

5/8-18 HEX JAM NUT GR2

1шт.

25

700134797

SHAFT

WA (Includes item 18)

1шт.

26

700134805

SUPPORT

- bearing

1шт.

27

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

28

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

3шт.

29

231-5146

FLANGE NUT,3/8"-16

3шт.

30

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

Выбрано товаров: 31
