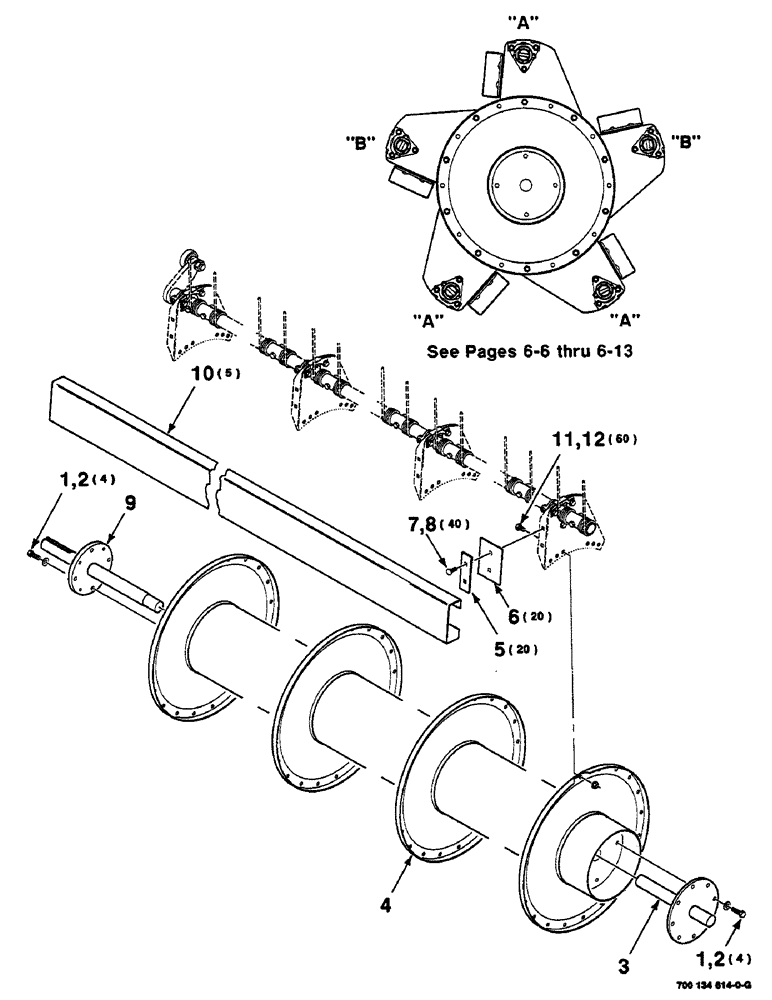

Запчасти Case IH 625 (6-02) - REEL ASSEMBLY, 14 AND 16 FOOT (58) - ATTACHMENTS/HEADERS

1

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

8шт.

3

700110207

SHAFT

WA - left

1шт.

4

700110209

REEL

WA - 14 foot

1шт.

700114540

REEL

WA - 16 foot

1шт.

5

700114543

RETAINER

20шт.

6

700114544

LARGE PLATE

PLATE - reel

20шт.

7

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

40шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

40шт.

9

700122466

SHAFT

WA - right

1шт.

10

700124068

BAT ASSY.

BAT - reel, 14 foot

5шт.

700124069

BAT

- reel, 16 foot

5шт.

11

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

60шт.

12

231-5146

FLANGE NUT,3/8"-16

60шт.
