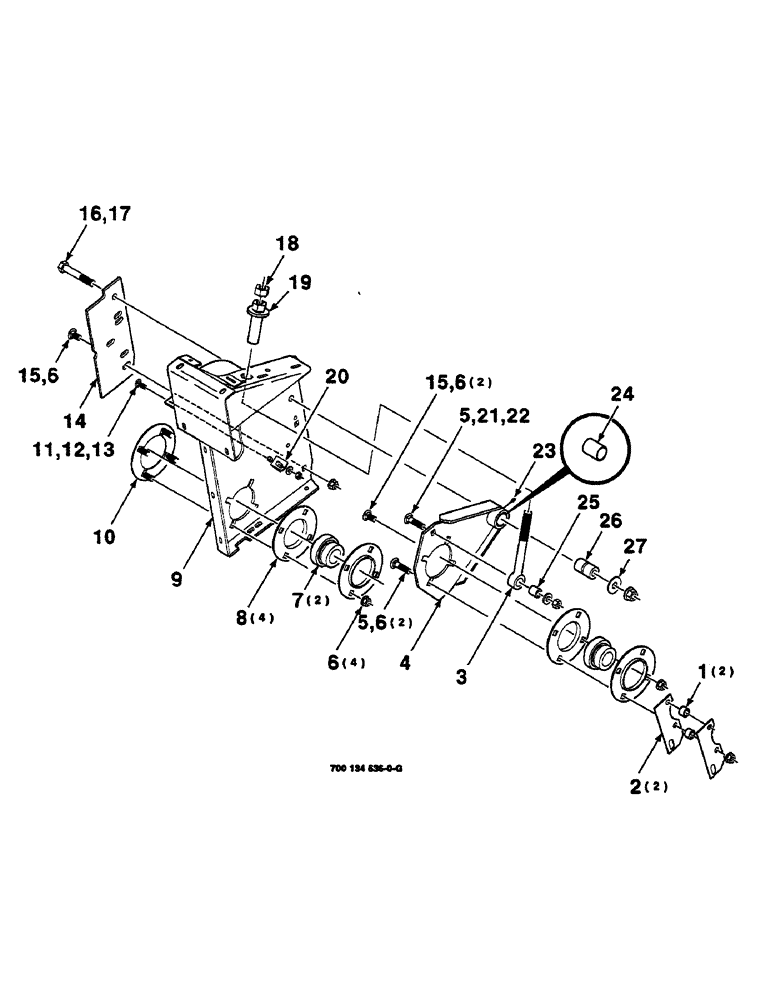

Запчасти Case IH 625 (5-06) - PANEL ASSEMBLY, HAY CONDITIONER, LEFT (58) - ATTACHMENTS/HEADERS

1

428938

SPACER

2шт.

2

700136301

STRAP

- mounting

2шт.

3

700108789

EYEBOLT

1шт.

4

700109404

ARM ASSY.

ARM ASSEMBLY - H/C (Includes item 24)

1шт.

5

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

3шт.

6

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

9шт.

7

50328

SPHERICAL BEARING,38.1 mm ID x 80 mm OD x 18, 56.36 mm

- spherical

2шт.

8

663562R1

FLANGE

Flange

4шт.

9

700134638

PANEL

WA - H/C, left

1шт.

10

700115294

RING

WA - H/C, left

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

1шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

700134644

PLATE

1шт.

15

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

3шт.

16

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

5/8-11 X 3-3/4 C

1шт.

17

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

1шт.

18

425-1112

NUT,3/4"-16, G5

3/4-16 H

1шт.

19

700108786

STOP

WA

1шт.

20

700109432

STOP

1шт.

21

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

24

852467

BUSHING

Bushing

1шт.

25

700108790

SPACER

1шт.

26

6834394

BUSHING,17.46mm ID x 31.75mm OD x 53.5mm L

1шт.

27

6834402

WASHER

- special

1шт.
