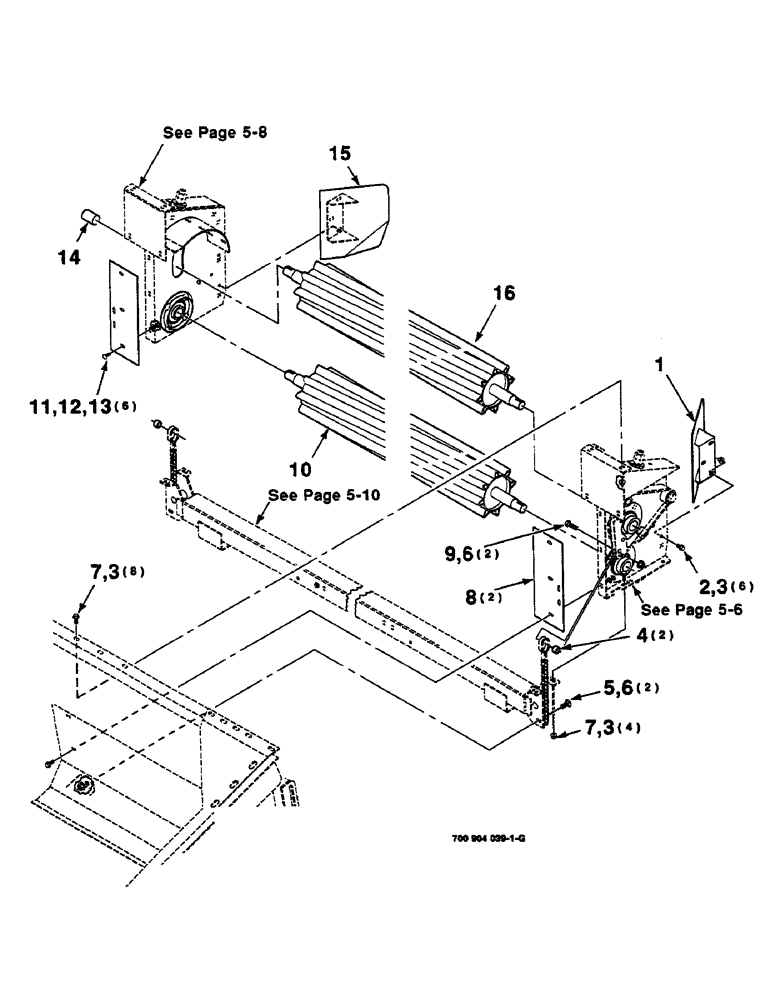

Запчасти Case IH 625 (5-02) - HAY CONDITIONER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700134752

SHIELD

WA -forming

1шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

6шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

18шт.

4

428938

SPACER

2шт.

5

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

3/8-16 X 1-1/4 HFS GR8

12шт.

8

700110186

STEEL PLATE

SHIM

2шт.

9

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

10

700115122

ROLLER

ROLL WA - lower

1шт.

11

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 1", G5

6шт.

12

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

13

425-105

NUT,5/16"-18, G5

FSLN 5/16"-18, G5

6шт.

14

700713521

COVER

1шт.

15

700116705

SHIELD

WA -forming

1шт.

16

700121385

ROLL

- steel, upper

1шт.

700706617

ROLL

ER - rubber, upper

1шт.
