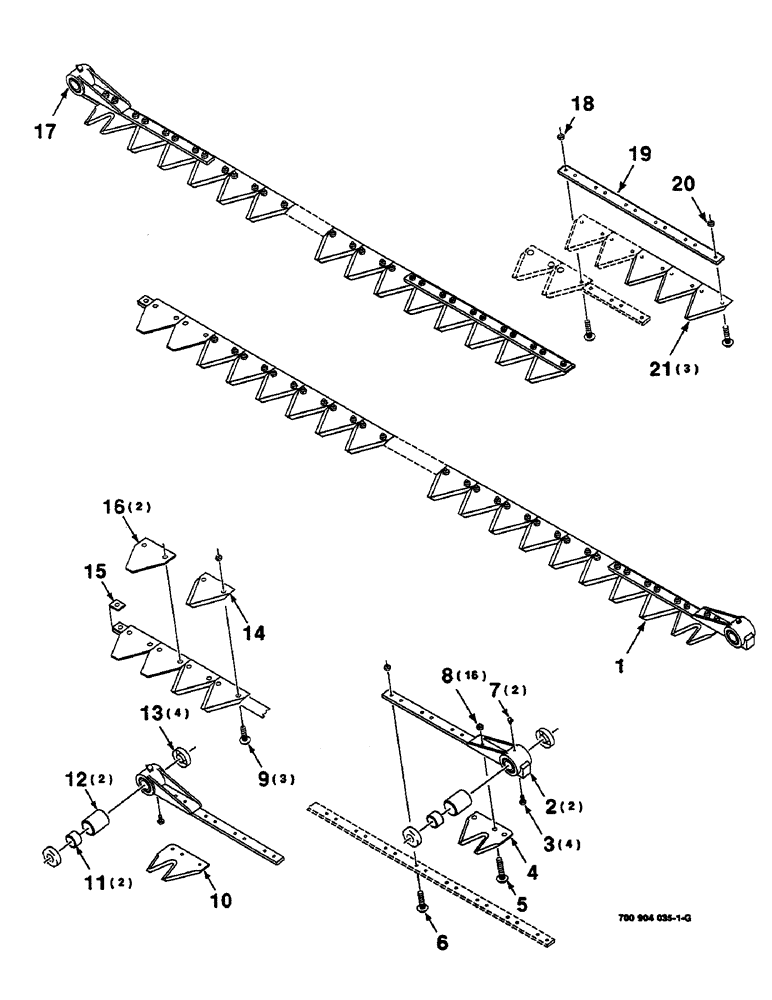

Запчасти Case IH 625 (3-16) - SICKLE ASSEMBLIES, 16 FOOT (58) - ATTACHMENTS/HEADERS

1

700715167

KNIFE ASSY

SICKLE ASSEMBLY - left

1шт.

2

700114594

KNIFE HEAD

SICKLE HEAD ASSEMBLY (Includes items 7, 11, 12 and 13)

2шт.

3

28-48

BOLT,Hex, 1/4" - 28 x 1/2", Gr 8

1/4-28 X 1/2 C GR8 NP

4шт.

4

700705462

KNIFE SECTION

DOUBLE END SECTION, left

1шт.

5

700706479

BOLT AND NUT

#12-24 X 1-1/4 BOLTS & NUTS (Packaged 25 per box)

1шт.

6

700705297

KIT

#12-24 X 1 BOLTS & NUTS (Packaged 25 per box)

1шт.

7

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

8

1954816C1

LOCK NUT

12-24 SPECIAL LOCK NUT

16шт.

9

700705296

BOLT AND NUT

#12-24 X 5/8 BOLTS & NUTS (Packaged 50 per box)

3шт.

10

700705463

KNIFE SECTION

DOUBLE END SECTION, right

1шт.

11

B18254

NEEDLE BEARING,Needle, 25.4mm ID x 31.75mm OD x 25.4mm W

NEEDLE - bearing

2шт.

12

700114599

BUSHING,16.27mm ID x 25.55mm OD x 38mm L

INNER RACE

2шт.

13

697494R91

OIL SEAL

SEAL

4шт.

14

700705300

KNIFE SECTION

PACKAGE OF 25 TOP SERRATED SECTIONS

1шт.

15

6821052

SHIM

1шт.

16

51200279

KNIFE SECTION

BLUNT SERRATED SECTION

2шт.

17

700715168

KNIFE ASSY

SICKLE ASSEMBLY - right

1шт.

18

700715170

BOLT

#12-24 X 3/4 BOLTS & NUTS

1шт.

19

700715218

BAR

- reinforcement

1шт.

There are no rivets in the sickle bar on the 625 head. All sections are bolt on sections.

1шт.

20

700715160

HARDWARE,Flat Hd, CSK, #12 - 24 x 0.50", Spcl

#12-24 X 1/2 BOLTS & NUTS (Packaged 25 per box)

1шт.

Ref 20 is the screw special, Hex socket flat countersunk head, 12-24 x .500, box of (25) SCREWS & LOCK NUTS WITH (1) 1/8" Allen Wrench.

1шт.

21

51200281

KNIFE SECTION

TAPERED HOLE SECTION

3шт.
