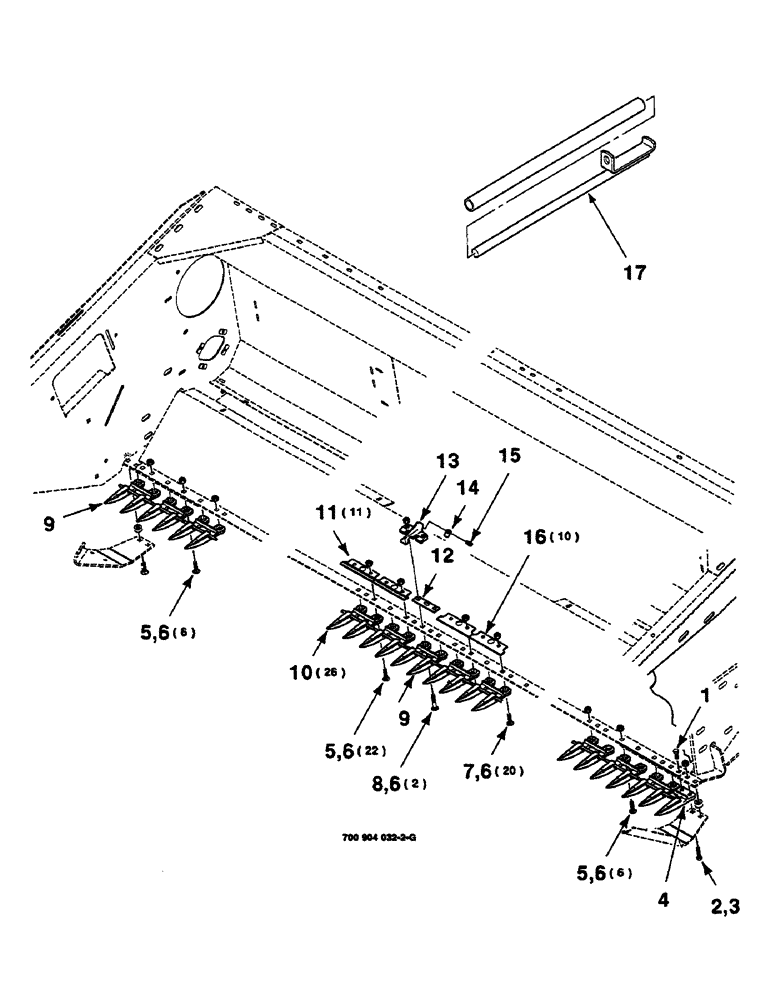

Запчасти Case IH 625 (3-08) - HOLDDOWN AND GUARD ASSEMBLY, RANGE GUARD, 14 FOOT (58) - ATTACHMENTS/HEADERS

1

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

1шт.

2

700706821

SCREW

7/16-20 X 1-1/2 FTC

1шт.

3

425-117

NUT,7/16"-20, G5

1шт.

4

NLS

NO LONGER SERVICED

- single

1шт.

5

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

7/16-14 X 1-1/2 RHSNB

34шт.

6

425-107

NUT,7/16"-14, G5

56шт.

7

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

7/16-14 X 1-3/4 RHSNB

20шт.

8

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

7/16-14 X 2-1/4 RHSNB

2шт.

9

700707464

GUARD

- double, center

2шт.

10

700716292

GUARD

- sickle, double

26шт.

11

700134757

PLATE

HOLDDOWN

11шт.

12

700111956

PLATE

SHIM

1шт.

13

700117849

PACKAGE

HOLDDOWN ASSEMBLY (Includes items 6, 8, 14 and 15)

1шт.

14

700107019

KIT

WELD NUT

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

16

700134758

PLATE

HOLDDOWN

10шт.

17

6135081

GUARD

STRAIGHTENER

1шт.
