Запчасти Case IH 625 (2-16) - AUGER DRIVE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

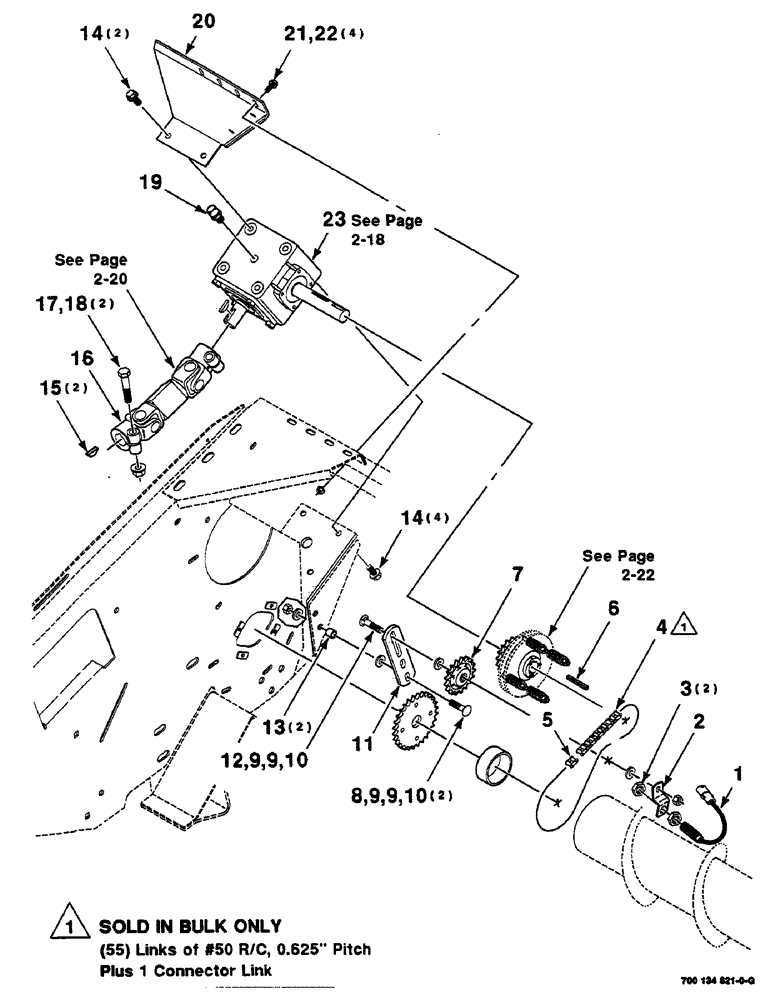

Схема запчастей Case IH 625 - (2-16) - AUGER DRIVE ASSEMBLY, RIGHT (58) - ATTACHMENTS/HEADERS

Артикул

Название

Примечание

Количество

1

700706398

SENSOR

PTO SENSOR

1шт.

2

700115884

BRACKET

MTG - sensor

1шт.

3

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 J GR2

2шт.

4

700704752

CHAIN

- roller, o-ring #50 (10 foot bulk)

1шт.

5

700709539

LINK,15.88mm Pitch

CONNECTOR LINK, o-ring #50 (Diamond)

1шт.

700702950

LINK

CONNECTOR LINK, o-ring #50 (Daido)

1шт.

6

O5528N

KEY

1/4 X 2-1/2 STRAIGHT KEY

1шт.

7

7087398

DRIVE SPROCKET

SPROCKET - idler, 17 tooth

1шт.

8

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 RHSNB

2шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

6шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

11

700124907

STRAP

- idler mounting

1шт.

12

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

13

6214639

SPACER

2шт.

14

360-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

6шт.

15

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

16

700715713

UNIVERSAL JOINT

U-JOINT-SHOCK ABSORBER ASSEMBLY

1шт.

17

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

18

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

2шт.

19

700712886

BREATHER

1шт.

20

700134723

PANEL

- rear, right

1шт.

21

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

22

231-5146

FLANGE NUT,3/8"-16

4шт.

23

700715769

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

Выбрано товаров: 24
