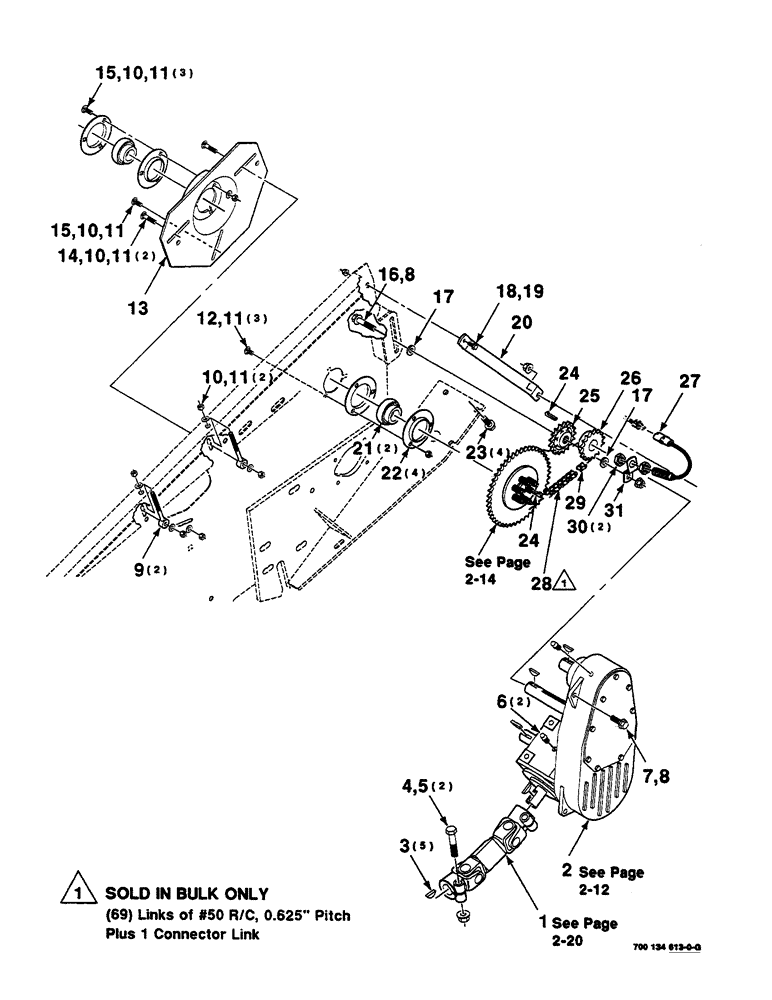

Запчасти Case IH 625 (2-10) - AUGER DRIVE ASSEMBLY, LEFT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
700715772
GEARBOX ASSY
GEARBOX ASSEMBLY COMPLETE
1шт.
1
700715713
UNIVERSAL JOINT
U-JOINT - SHOCK ABSORBER ASSEMBLY
1шт.
2
700715772
GEARBOX ASSY
GEARBOX ASSEMBLY
1шт.
3
126-36
WOODRUFF KEY,#23, 5/16" x 1 3/8"
5шт.
4
413-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
2шт.
6
700712886
BREATHER
2шт.
7
8701237
BOLT
1/2-13 X 1-1/2 HFS GR8
1шт.
8
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN GR/G
2шт.
9
700110578
ROD
WA
2шт.
10
496-11041
WASHER,13/32" x 13/16" x .065", HDN
3/8 HARDENED PLAIN WASHER
8шт.
11
425-106
NUT,3/8"-16, Cl 5
11шт.
12
111-360
CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5
3шт.
13
700110586
LARGE PLATE
PLATE WA
1шт.
14
433-628
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5
3/8-16 X 1-3/4 RHSNB
2шт.
15
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3/8-16 X 1 RHSNB
4шт.
16
700712882
BOLT,Hex Flg, 1/2" - 13 x 2 1/4", Gr 8
1/2-13 X 12-1/4 HFS GR8
1шт.
17
495-21056
WASHER,1/2"
1/2 HARDENED PLAIN WASHER
2шт.
18
121-115
SERRATED BOLT,Hex, 5/16" - 18 x 3/4"
1шт.
19
232-5315
FLANGE NUT,Flg, 5/16"-18
5/16-18 HFTLN GR/G
1шт.
20
700134710
SUPPORT
- gearbox
1шт.
21
619737R91
BEARING ASSY,31.76mm ID x 62mm OD x 18mm W
BEARING - spherical
2шт.
22
H747188
FLANGED BEARING,112.73 mm OD x 8.74 mm
FLANGE
4шт.
23
360-816
BOLT,Hex, 1/2" - 13 x 1", Gr 8
1/2-13 X 1 HFS GR8
4шт.
24
61424
KEY
1/4 X 1-1/4 GIB KEY
2шт.
25
7087398
DRIVE SPROCKET
SPROCKET - idler, 50B17
1шт.
26
700708837
SPROCKET
- 50B16
1шт.
27
700706398
SENSOR
PTO SENSOR
1шт.
28
700704752
CHAIN
- roller, o-ring #50 (10 foot bulk)
1шт.
29
700709539
LINK,15.88mm Pitch
CONNECTOR LINK, o-ring #50 (Diamond)
1шт.
700702950
LINK
CONNECTOR LINK, o-ring #50 (Daido)
1шт.
30
425-1512
JAM NUT,Jam, 3/4"-10, G5
3/4-16 J GR2
2шт.
31
700115884
BRACKET
MTG - sensor
1шт.
Выбрано товаров: 33
