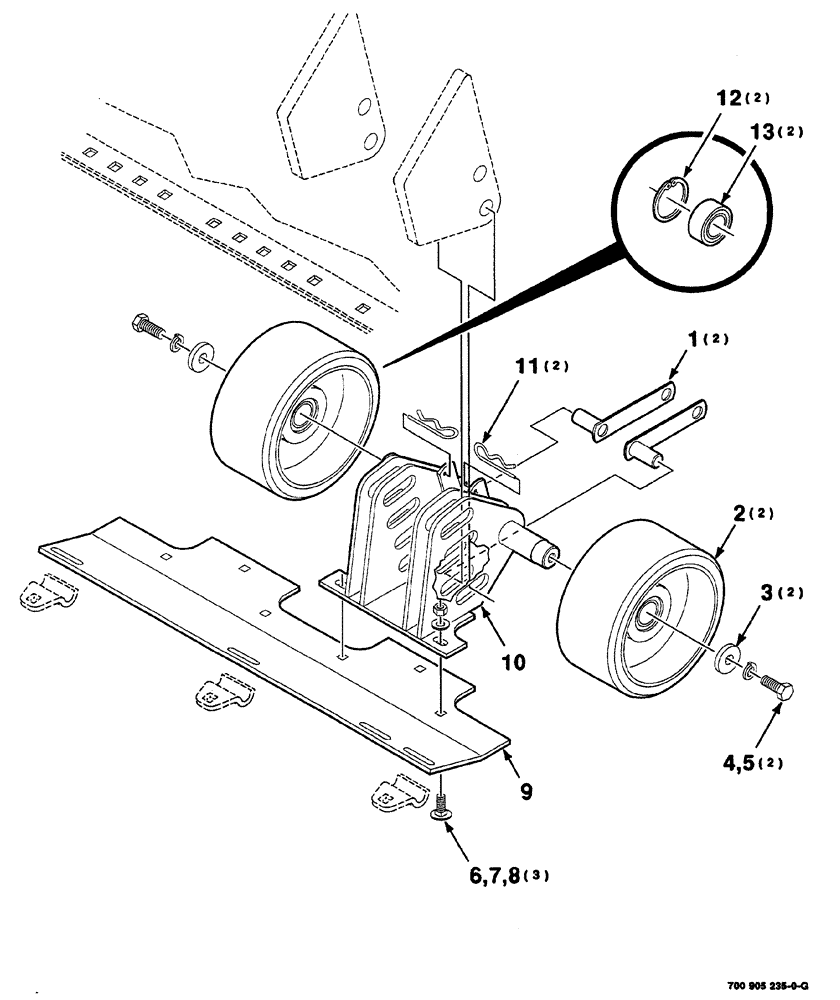

Запчасти Case IH 525 (09-010) - GAUGE WHEEL KIT (14 FOOT) (88) - ACCESSORIES

HK60966

KIT gauge wheel complete

1шт.

1

700150357

PIN

WA

2шт.

2

700119691

WHEEL

ASSEMBLY-GAUGE

2шт.

3

6223374

WASHER

2шт.

4

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

plow, 3/8-16 x 1

3шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

3шт.

8

425-106

NUT,3/8"-16, Cl 5

3шт.

9

700150297

SHOE

skid

1шт.

10

700150354

SUPPORT

WHEEL

1шт.

11

T54573

PIN

wire hair, cotter, .120

2шт.

12

100-21218

SNAP RING,2.165", Int, #216

2шт.

13

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

cylindrical

2шт.
