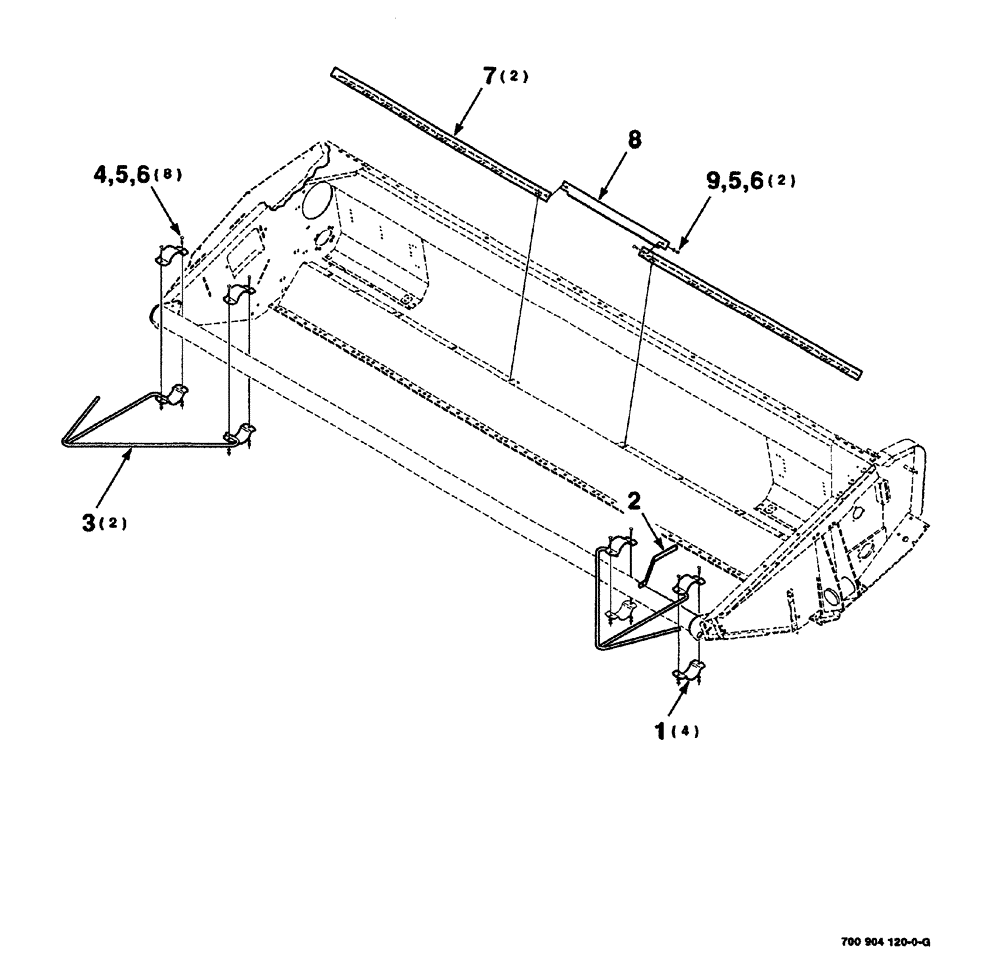

Запчасти Case IH 525 (09-008) - CROP DIVIDER KIT (88) - ACCESSORIES

1

700111549

CLAMP

half

4шт.

2

6830707

STRAP

DEFLECTOR

1шт.

3

700111547

ROD

WA-DIVIDER

2шт.

4

433-528

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1 3/4", Gr 5

BOLT round head square neck, 5/16-18 x 1-3/4

8шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

10шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

10шт.

7

700134892

STRIPPER

2шт.

8

700111550

STRIPPER

center

1шт.

9

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

2шт.
