(07-038) - SKID SHOES AND MOUNTING ASSEMBLIES (14 FOOT)

Запчасти Case IH 525 (07-038) - SKID SHOES AND MOUNTING ASSEMBLIES (14 FOOT) (58) - ATTACHMENTS/HEADERS

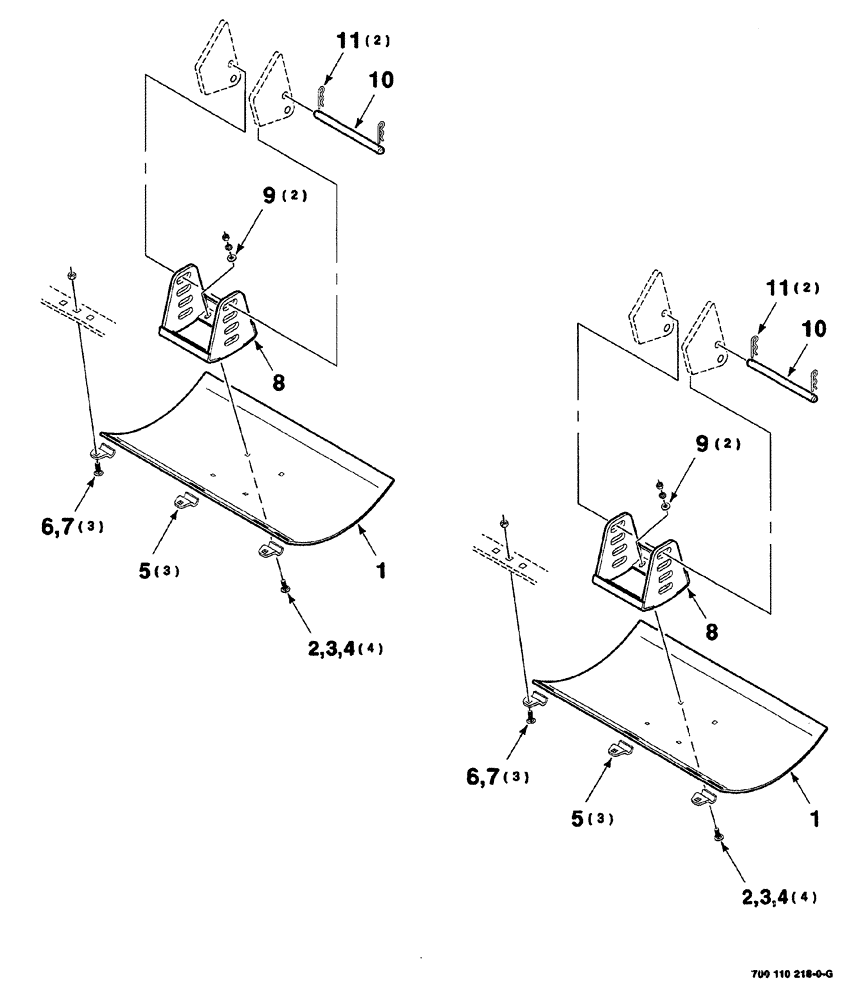

Схема запчастей Case IH 525 - (07-038) - SKID SHOES AND MOUNTING ASSEMBLIES (14 FOOT) (58) - ATTACHMENTS/HEADERS
5
4
11
8
10
3
1
7
10
9
11
8
7
2
1
4
6
6
9
2
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700110219

SKID PLATE

skid

2шт.

2

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

plow, 3/16-18 x 1-1/4

8шт.

3

492-11038

LOCK WASHER,3/8"

8шт.

4

425-106

NUT,3/8"-16, Cl 5

8шт.

5

6453799

CLIP

6шт.

6

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

6шт.

7

425-107

NUT,7/16"-14, G5

6шт.

8

700110220

SUPPORT

SHOE skid

2шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

4шт.

10

700110222

PIN

2шт.

11

S120261

PIN

wire hair, cotter, .148

4шт.
