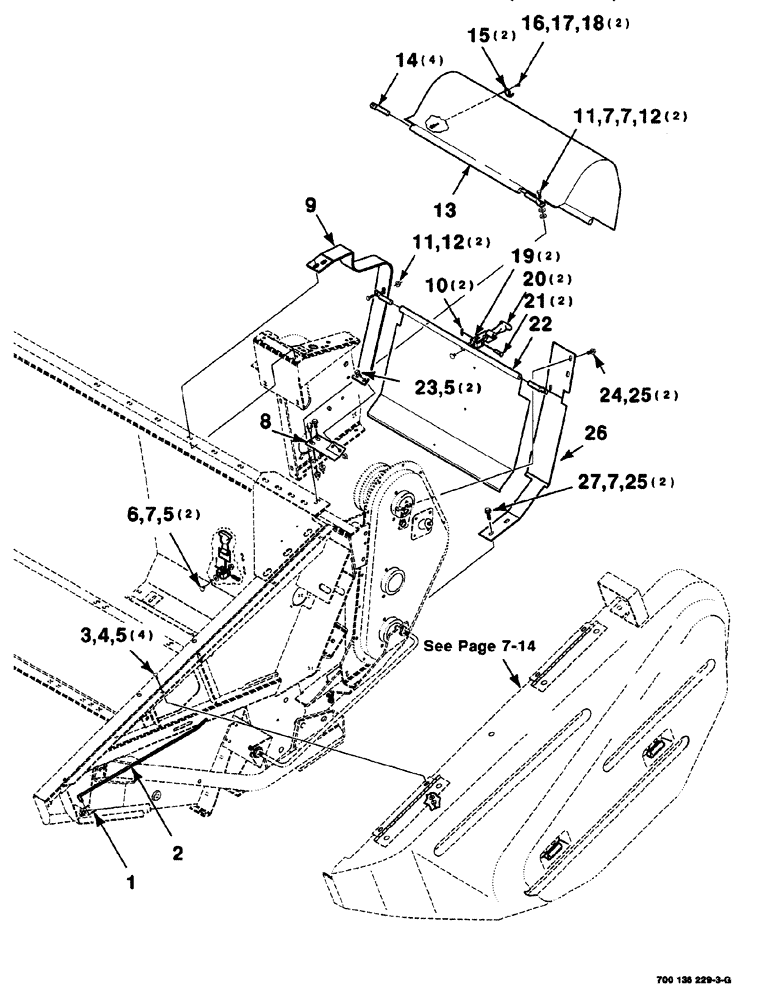

Запчасти Case IH 525 (07-024) - SHIELDS AND MOUNTING ASSEMBLIES, LEFT (14 FOOT) (58) - ATTACHMENTS/HEADERS

1

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

2

700134880

ROD

HANGER, left

1шт.

3

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

4

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

6

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

2шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

8шт.

8

700134853

SUPPORT

lower

1шт.

9

700136265

SUPPORT

WRAPPER-inner

1шт.

10

432-68

COTTER PIN,3/32" x 1/2"

2шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

12

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

4шт.

13

700136261

SHIELD

rear, left 14'

1шт.

14

6575484

PIN

4шт.

15

8722910

BRACKET

2шт.

16

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

cross recess pan head machine, #10-24 x 1/2 GR60M

2шт.

17

492-11010

LOCK WASHER,#10

2шт.

18

225-14110

NUT,#10-24

2шт.

19

776674

SUPPORT

BRACKET-ANCHOR

2шт.

20

494307C1

LATCH

rubber

2шт.

21

141-13

CLEVIS PIN,1/4" x 1.594"

clevis, 1/4 x 1-1/2

2шт.

22

700136262

SHIELD

rear, left 14'

1шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

24

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

25

425-106

NUT,3/8"-16, Cl 5

4шт.

26

700136264

SUPPORT

WRAPPER-outer

1шт.

27

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

2шт.
