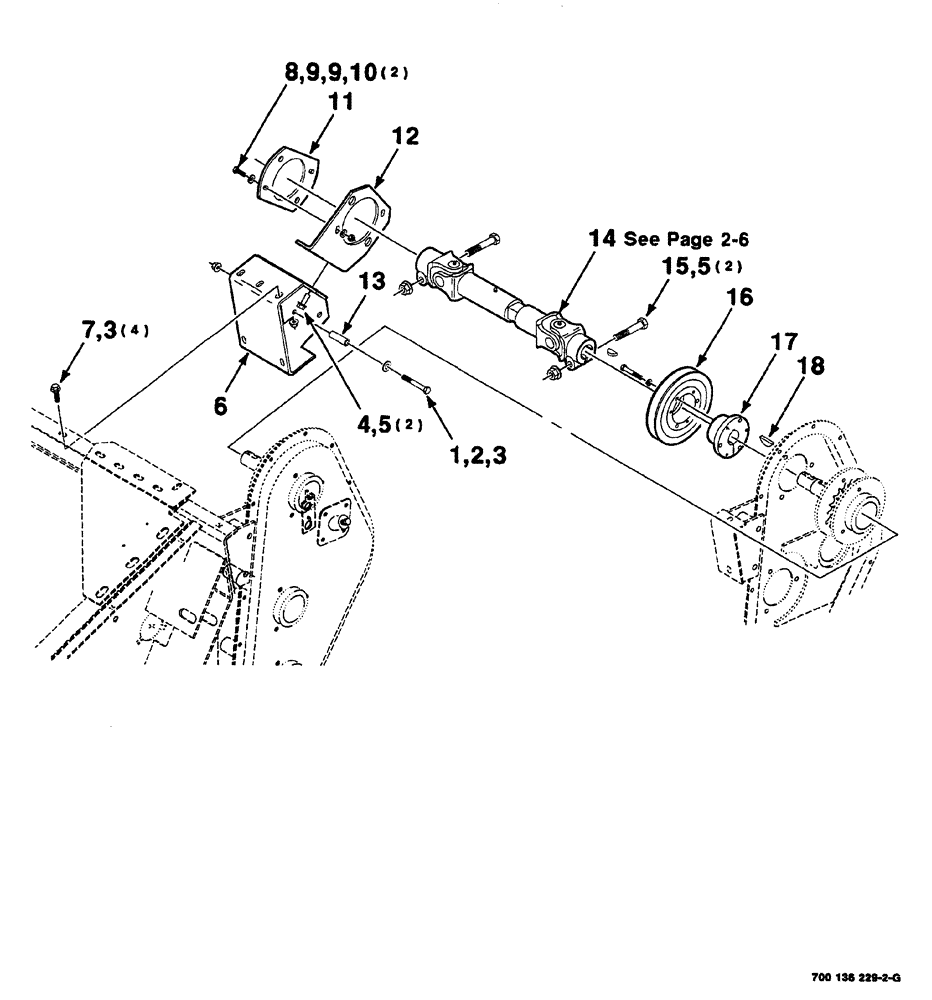

Запчасти Case IH 525 (02-004) - MAIN DRIVE ASSEMBLY (14 FOOT) (58) - ATTACHMENTS/HEADERS

1

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

2

496-21047

WASHER

hardened plain, 7/16

1шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

5шт.

4

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

2шт.

5

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

4шт.

6

700147227

CHANNEL

WA-mounting

1шт.

7

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

4шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

10

425-105

NUT,5/16"-18, G5

2шт.

11

700136294

PLATE

mounting

1шт.

12

700136284

SUPPORT

motor

1шт.

13

700111525

TUBE,15.88 mm OD, 48.5 mm Length

1шт.

14

700715723

UNIVERSAL JOINT

1шт.

15

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW hex cap, 1/2-13 x 2-3/4

2шт.

16

700136321

SHEAVE

DRIVE sickle

1шт.

17

700711851

BUSHING

taper

1шт.

18

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.
