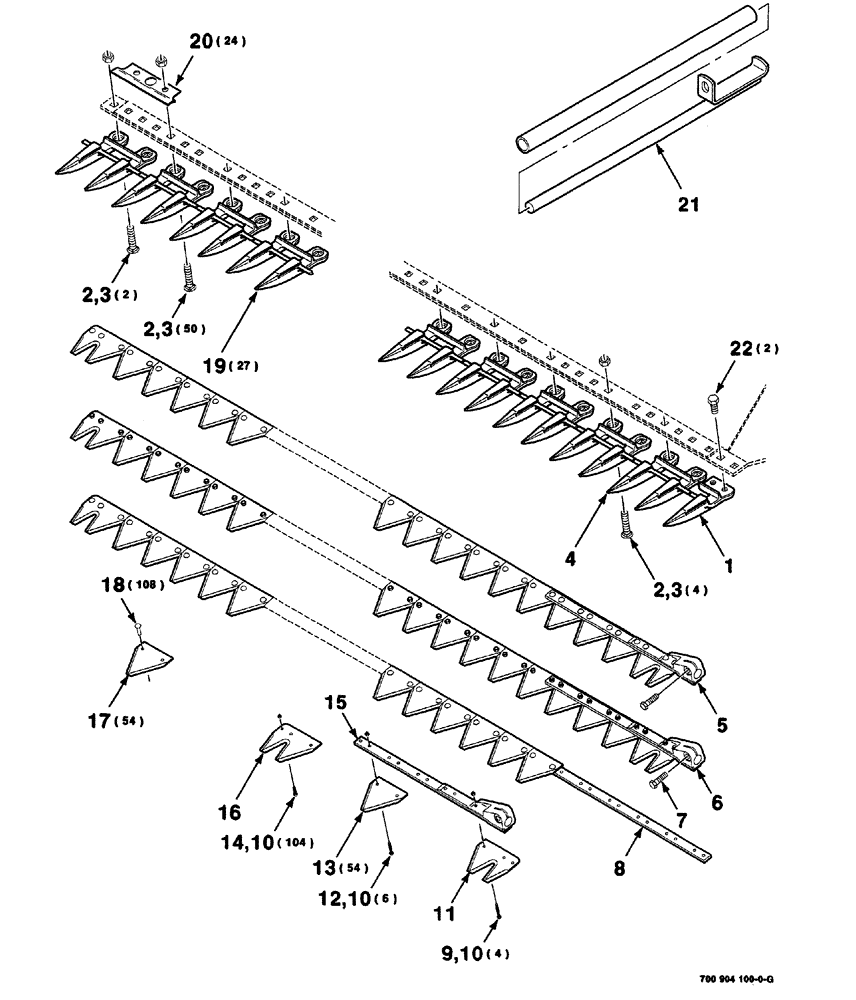

Запчасти Case IH 525 (03-004) - SICKLE & GUARD ASSEMBLY - RANGE GUARD (14 FOOT) (58) - ATTACHMENTS/HEADERS

1

049395

FINGER

single

1шт.

2

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT round head square neck, 7/16-14 x 1-1/2

56шт.

3

425-107

NUT,7/16"-14, G5

56шт.

4

700707464

GUARD

double

1шт.

5

700110731

KNIFE

SICKLE-14 foot (with head-riveted)

1шт.

6

700709623

KNIFE ASSY

SICKLE-14 foot (with head-bolt eze)

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

8

700115804

KNIFE

SICKLE-14 foot (without head-riveted)

1шт.

9

700706479

BOLT AND NUT

BOLT #12-24 x 1-1/4 (box of 25 bolts and locknuts)

4шт.

10

1954816C1

LOCK NUT

lock, #12-24

114шт.

11

700705462

KNIFE SECTION

double, left end

1шт.

12

700705297

KIT

BOLT #12-24 x 1 (box of 25 bolts and locknuts)

6шт.

13

700705300

KNIFE SECTION

top serrated, heavy duty .092 thick (packaged 25 per box)

54шт.

14

700705296

BOLT AND NUT

BOLT #12-24 x 5/8 (box of 50 bolts and locknuts)

104шт.

15

700111003

KNIFE HEAD

SICKLE WA

1шт.

16

700705463

KNIFE SECTION

double, right end

1шт.

17

NLS

NO LONGER SERVICED

SECTION, KNIFE SICKLE smooth, standard .105 thick (packaged 25 per box)

54шт.

18

990817R91

RIVET

round head, #5-1/2 x 9/16 (1 Ib. box of approx. 140 rivets)

108шт.

19

700716292

GUARD

double

27шт.

20

700134757

PLATE

holddown

24шт.

21

6135081

GUARD

TOOL straightener

1шт.

22

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.
