Запчасти Case IH 525 (02-036) - HAY CONDITIONER DRIVE ASSEMBLY (14 FOOT) (58) - ATTACHMENTS/HEADERS

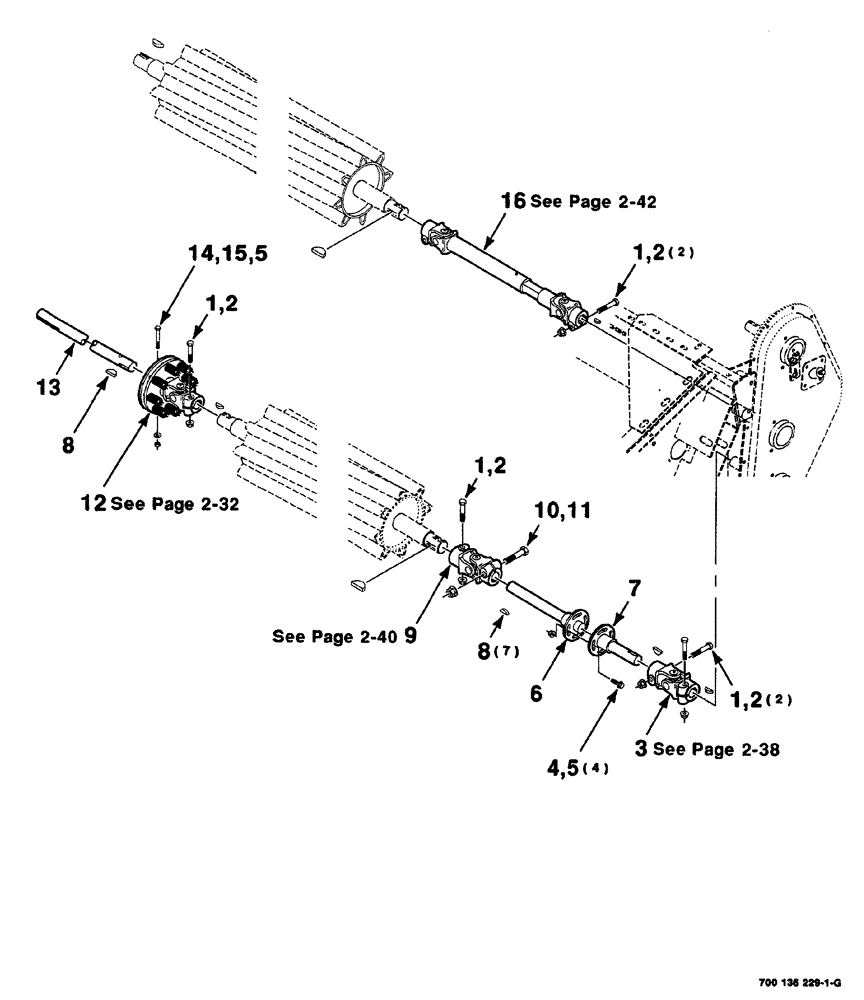

Схема запчастей Case IH 525 - (02-036) - HAY CONDITIONER DRIVE ASSEMBLY (14 FOOT) (58) - ATTACHMENTS/HEADERS
1
12
8
3
16
15
2
7
2
13
8
5
10
1
6
5
11
2
2
1
9
4
14
1

Артикул

Название

Примечание

Количество

1

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW hex cap, 1/2-13 x 2-3/4

6шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

6шт.

3

700715720

UNIVERSAL JOINT

1шт.

4

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

4шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

5шт.

6

700134819

SHAFT

WA-14 foot left

1шт.

7

700133248

SHAFT

WA

1шт.

8

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

8шт.

9

700715721

UNIVERSAL JOINT

1шт.

10

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

11

232-53110

FLANGE NUT,Flg, 5/8"-11

1шт.

12

700710451

CLUTCH

U-JOINT

1шт.

13

700121373

SHAFT

14 foot

1шт.

14

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

15

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

1шт.

16

700715726

UNIVERSAL JOINT

14 foot

1шт.

Выбрано товаров: 16
