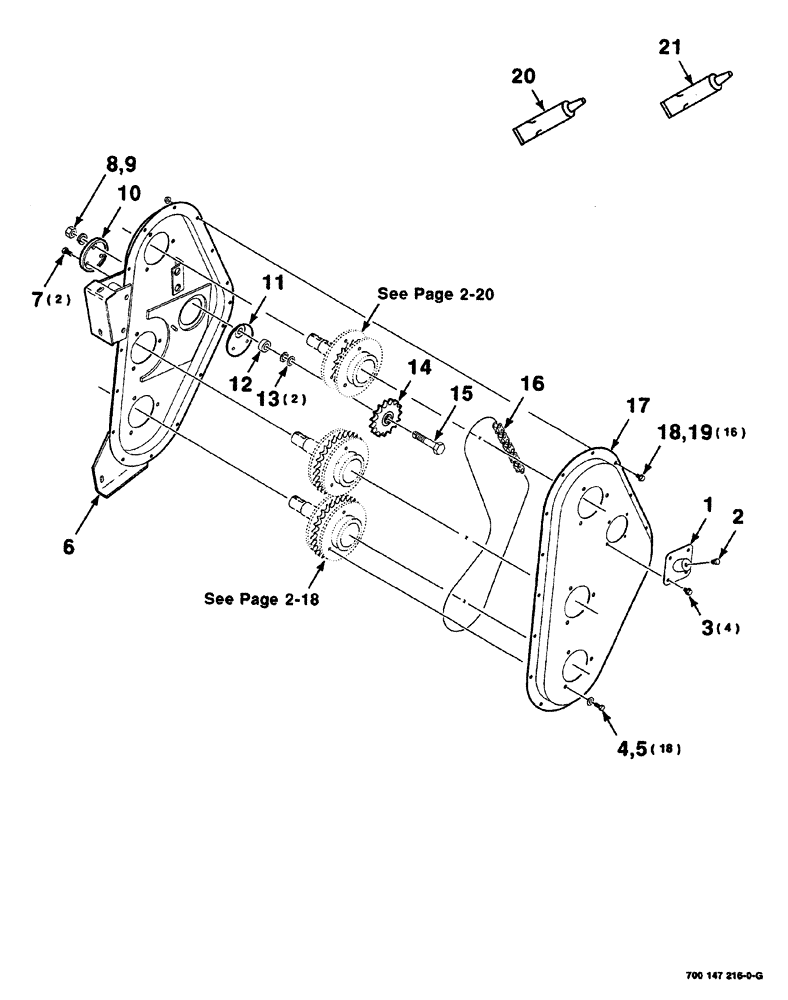

Запчасти Case IH 525 (02-016) - CHAINBOX ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700133239

PLATE

WA-COVER

1шт.

2

152127H1

BREATHER,1/8"-27, Short

VENT plug

1шт.

3

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

hex washer head thread forming tapping, 5/16-18 x 1/2

4шт.

4

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

18шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

18шт.

6

700136315

PLATE

WA-inner

1шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

8

492-11062

BEARING WASHER,5/8"

1шт.

9

425-1010

NUT,5/8"-11, G5

1шт.

10

700110612

COVER

cam

1шт.

11

700110613

CAM

1шт.

12

700110610

SPACER

1шт.

13

52233

BUSHING

narrow rim machinery, 5/8 x 14 gauge

2шт.

14

541857R92

SPROCKET,15T

idler, 15 tooth

1шт.

15

700110943

SCREW

cap, special, 5/8-11 x 3

1шт.

16

700707023

TRACK ASSY

roller

1шт.

17

700136320

PLATE

outer

1шт.

18

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

16шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

20

700707823

SEALANT

TUBE -10.3 oz.

1шт.

21

B505154

LUBRICANT

GEAR

1шт.
