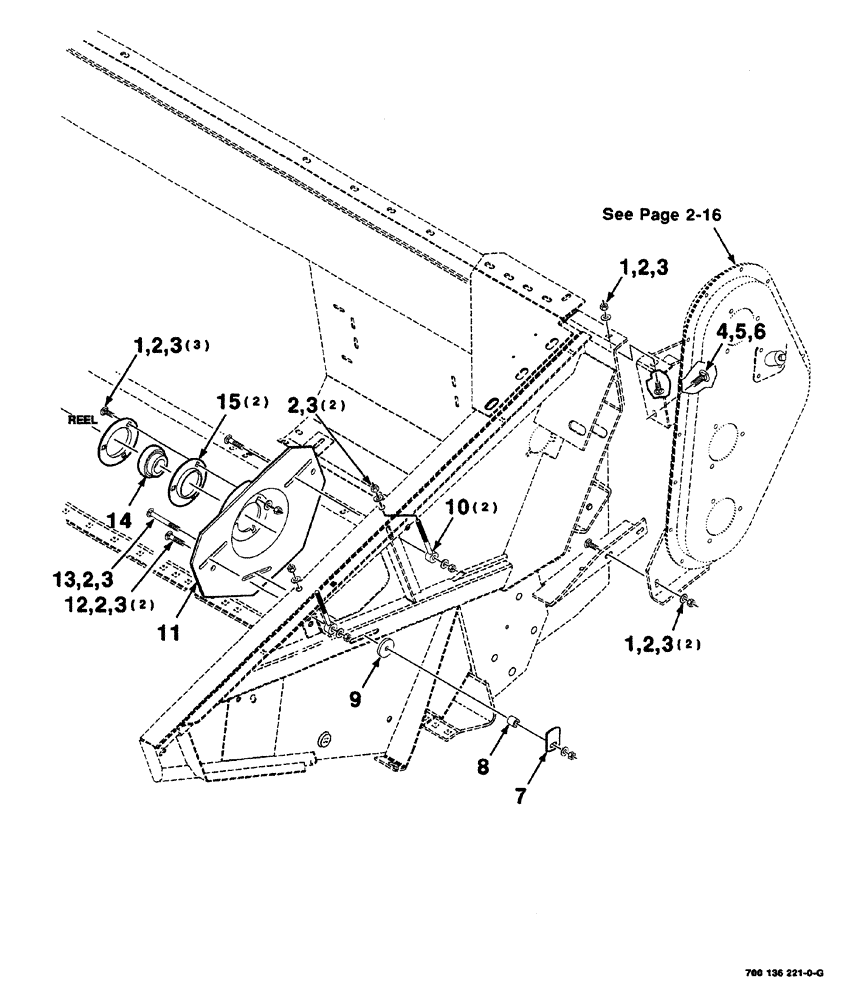

Запчасти Case IH 525 (02-014) - REEL DRIVE ASSEMBLY (LEFT) (58) - ATTACHMENTS/HEADERS

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

6шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

11шт.

3

425-106

NUT,3/8"-16, Cl 5

11шт.

4

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1шт.

5

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

hardened plain, 1/2

1шт.

6

425-108

NUT,1/2" - 13, Gr 5

1шт.

7

489898

BRACKET

PLATE

1шт.

8

6869382

SPACER

1шт.

9

6581052

WASHER

special

1шт.

10

700110578

ROD

WA

2шт.

11

700110586

LARGE PLATE

PLATE, LARGE WA-left

1шт.

12

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

round head square neck, 3/8-16 x 1-3/4

2шт.

13

433-656

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

BOLT round head square neck, 3/8-16 x 3-1/2

1шт.

14

619737R91

BEARING ASSY,31.76mm ID x 62mm OD x 18mm W

spherical

1шт.

15

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

bearing

2шт.
