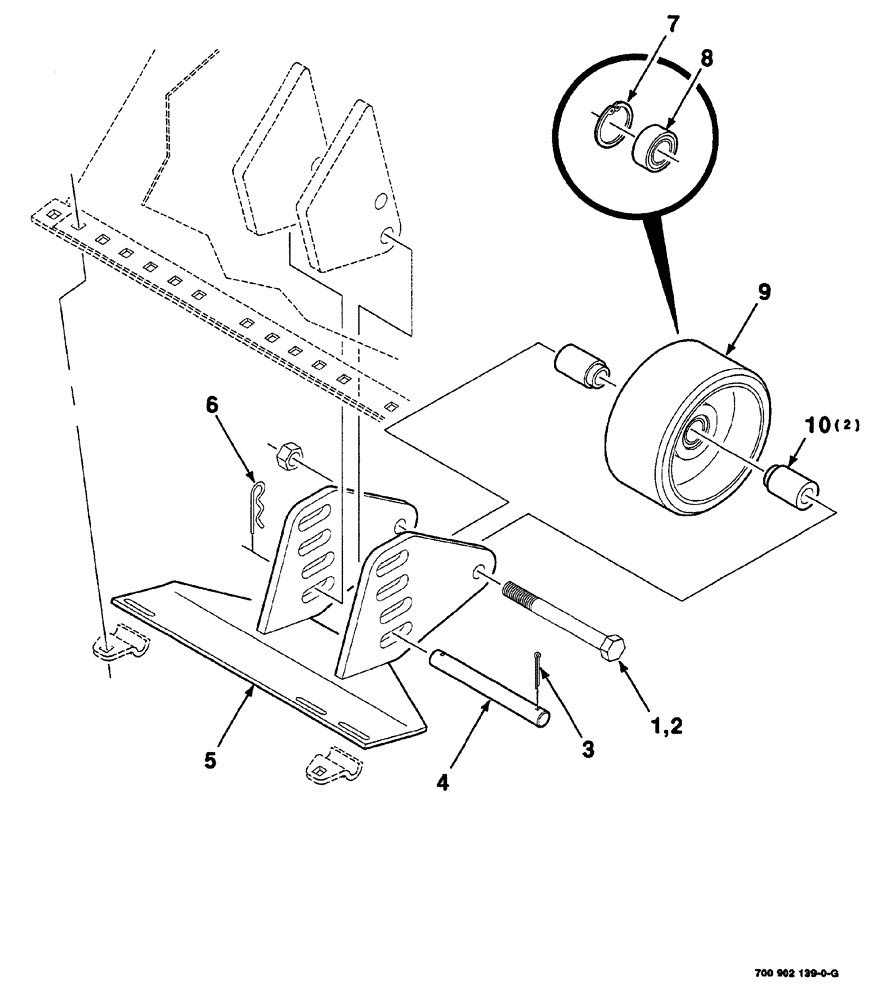

Запчасти Case IH 525 (09-012) - GAUGE WHEEL KIT (12 FOOT) (88) - ACCESSORIES

HK60561

ATTACHMENT

KIT gauge wheel complete

1шт.

1

413-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

hex, 3/4-10 x 7

1шт.

2

425-1012

NUT,3/4"-10, G5

1шт.

3

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

4

700117631

PIN

1шт.

5

700119671

SUPPORT

WHEEL

1шт.

6

T40222

SPLIT PIN/SAFETY PIN

wire hair, cotter, .243

1шт.

7

100-21218

SNAP RING,2.165", Int, #216

1шт.

Part of Ref. 9, part number 700119691

1шт.

8

700709106

BEARING, ROLLER, CYL,29.99mm ID x 55mm OD x 23.02mm W

cylindrical

1шт.

Part of Ref. 9, part number 700119691

1шт.

9

700119691

WHEEL

ASSEMBLY-GAUGE (Includes: Ref. 7 and 8)

1шт.

10

700119670

TUBE,38.1 mm OD, 61 mm Length

spacer

2шт.
