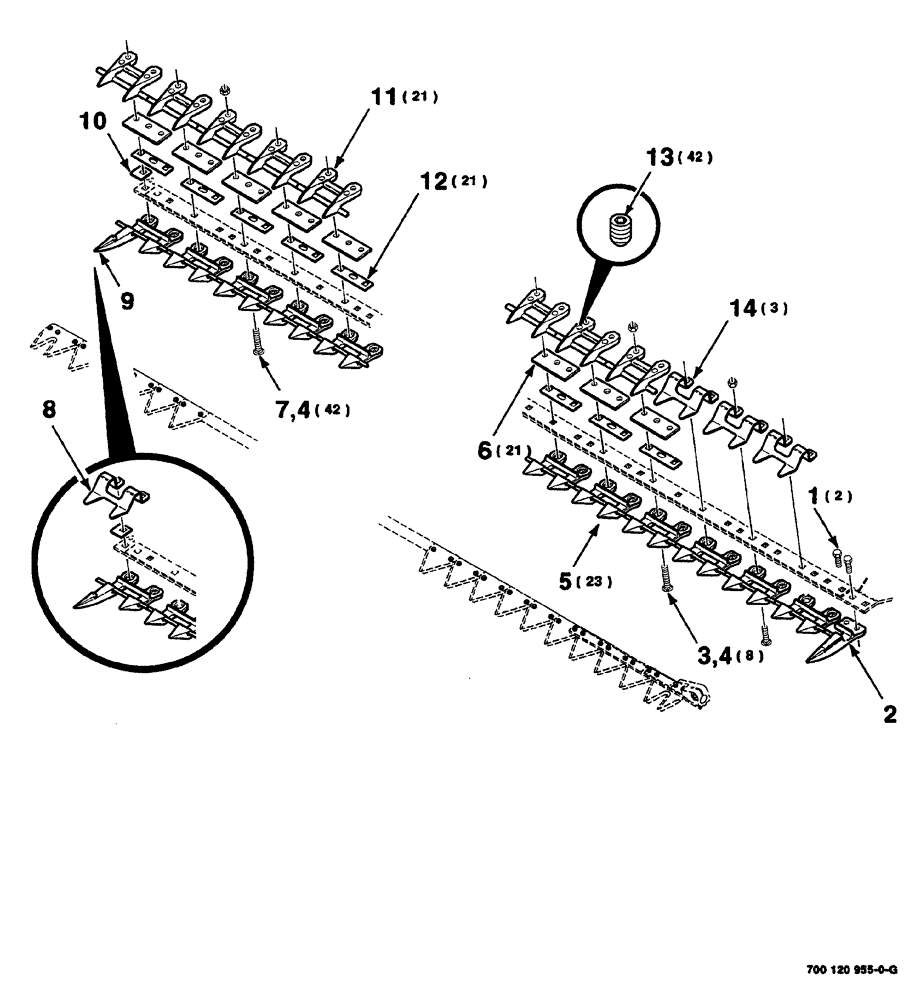

Запчасти Case IH 525 (09-006) - ADJUSTABLE STUB GUARD KIT (12 FOOT) (88) - ACCESSORIES

700120957

GUARD

KIT stub, complete (12 foot)

1шт.

1

414-716

BOLT,Hex, 7/16" - 20 x 1", Gr 5

2шт.

2

49395

GUARD

single

1шт.

3

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT round head square neck, 7/16-14 x 1-1/2

8шт.

4

425-107

NUT,7/16"-14, G5

50шт.

5

49312

GUARD

double, stub (packaged 25 per box)

23шт.

6

700106256

PLATE

upper

21шт.

7

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT round head square neck, 7/16-14 x 2-1/4

42шт.

8

6479448

LARGE PLATE

PLATE, LARGE stub, right

1шт.

9

6210652

GUARD

double, end, right

1шт.

10

429464

SPACER

CUTTERBAR

1шт.

11

700106782

FINGER

GUARD-double stub, top adjustable

21шт.

12

700111956

PLATE

lower

21шт.

13

700703319

SET SCREW,1/2" - 13 x 1/2"

oval point socket set, (with patch lock) 1/2-13 x 1/2

42шт.

14

6586622

GUARD

holddown

3шт.
