(07-032) - SKID SHOE (CENTER) & WEAR PLATE ASSEMBLY (12 FOOT)

Запчасти Case IH 525 (07-032) - SKID SHOE (CENTER) & WEAR PLATE ASSEMBLY (12 FOOT) (58) - ATTACHMENTS/HEADERS

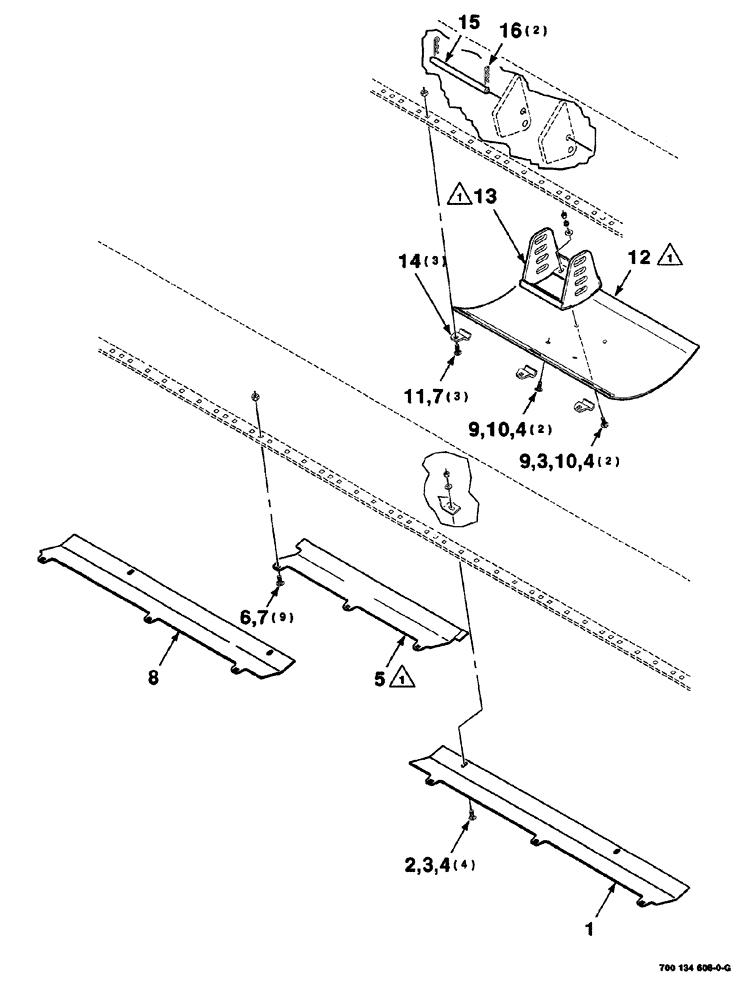

Схема запчастей Case IH 525 - (07-032) - SKID SHOE (CENTER) & WEAR PLATE ASSEMBLY (12 FOOT) (58) - ATTACHMENTS/HEADERS
16
6
4
11
9
10
4
2
8
15
4
9
10
5
14
13
3
1
3
7
7
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700134703

PLATE

wear-left

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.

3

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

6шт.

4

425-106

NUT,3/8"-16, Cl 5

8шт.

5

700120999

WEAR PLATE

PLATE wear-center

1шт.

6

434-716

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 1", Gr 5

round head square neck, 7/16-14 x 1

9шт.

7

425-107

NUT,7/16"-14, G5

12шт.

8

700134704

PLATE

wear-right

1шт.

9

118-140

PLOW BOLT,3/8"-16 x 1 1/8", G5

plow, 3/8-16 x 1-1/4

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

3шт.

12

700110219

SKID PLATE

skid, center

1шт.

13

700110220

SUPPORT

adjustable

1шт.

14

6453799

CLIP

SHOE skid

3шт.

15

700110222

PIN

1шт.

16

S120261

PIN

hair, cotter

2шт.
