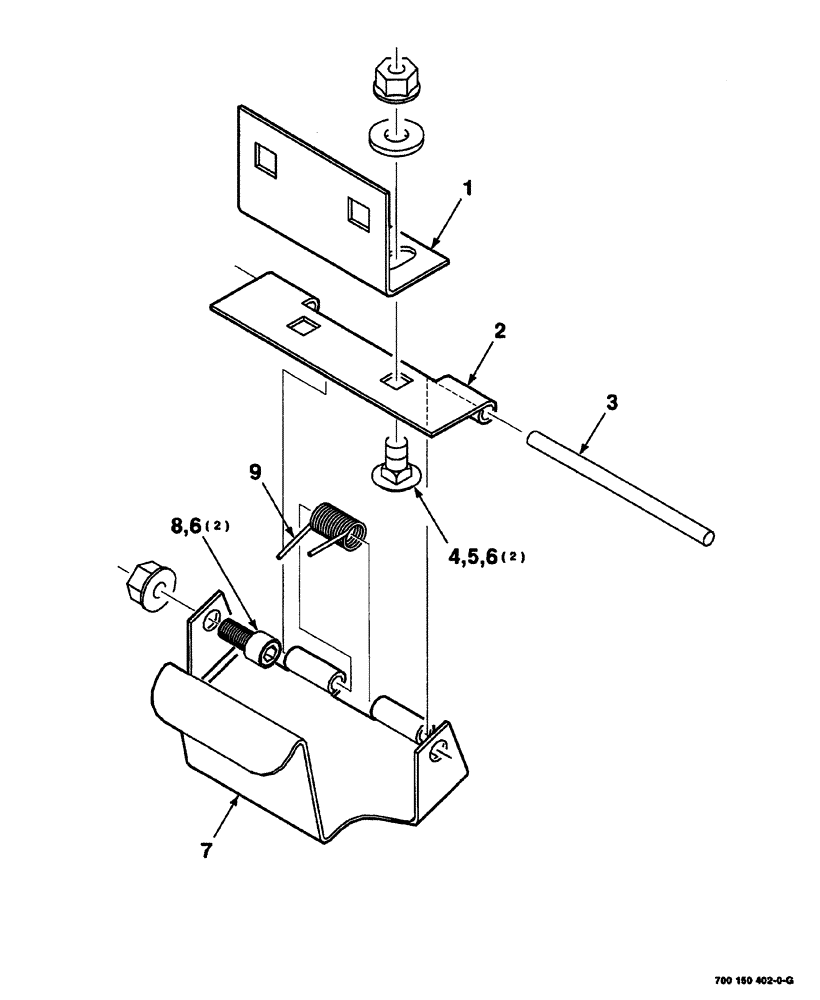

Запчасти Case IH 525 (07-018) - LATCH ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700150405

ANGLE

LATCH

1шт.

2

700150404

MOUNTING PARTS

HANDLE

1шт.

3

700114528

PIN

HINGE

1шт.

4

412-48

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1/2", Gr 2

BOLT round head square neck, 1/4-20 x 1/2

2шт.

5

496-11028

WASHER,9/32" x 5/8" x .065, HDN

hardened plain, 1/4

2шт.

6

1703354

NUT

hex flange top lock, 1/4-20 GR/G

4шт.

7

700150403

HANDLE

1шт.

8

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

hex socket head cap, 1/4-20 x 1/2

2шт.

9

700711020

SPRING

torsion

1шт.
