Запчасти Case IH 525 (02-002) - MAIN DRIVE ASSEMBLY (12 FOOT) (58) - ATTACHMENTS/HEADERS

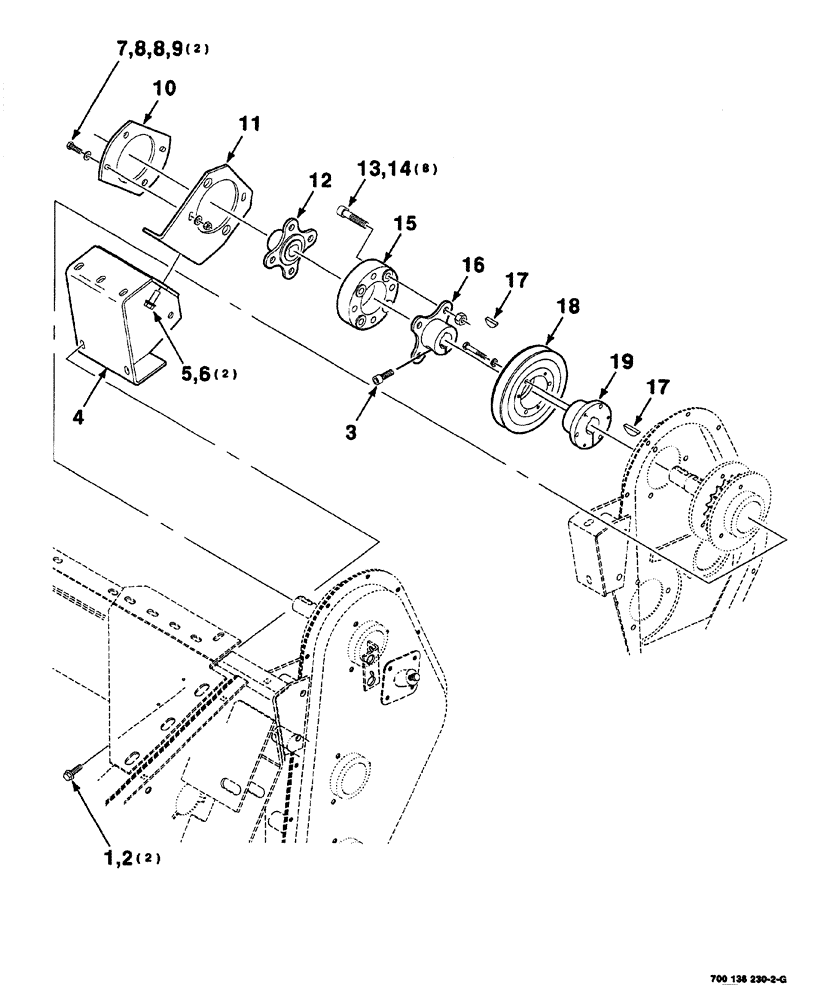

Схема запчастей Case IH 525 - (02-002) - MAIN DRIVE ASSEMBLY (12 FOOT) (58) - ATTACHMENTS/HEADERS
1
18
2
6
11
13
10
7
8
4
3
5
17
14
17
15
9
16
12
19
8

Артикул

Название

Примечание

Количество

1

121-237

SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl

hex flange, 3/8-16 x 1-1/4 GR. 8

2шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

3

61-720

HEX SOC SCREW,7/16"-14 x 1 1/4"

SCREW hex socket head cap, 7/16-14 x 1-1/4 SPL

1шт.

4

700147227

CHANNEL

WA-mounting

1шт.

5

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

2шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

8

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

9

425-105

NUT,5/16"-18, G5

2шт.

10

700136294

PLATE

mounting

1шт.

11

700136284

SUPPORT

motor

1шт.

12

700114803

HUB

WA

1шт.

13

700706548

HEX SOC SCREW

hex socket head cap, 1/2-13 x 2-1/4 SPL

8шт.

14

425-108

NUT,1/2" - 13, Gr 5

8шт.

15

700706587

FLEXIBLE COUPLING

rubber

1шт.

16

700136295

HUB

WA

1шт.

17

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

2шт.

18

700136321

SHEAVE

DRIVE sickle

1шт.

19

700711851

BUSHING

taper

1шт.

Выбрано товаров: 19
