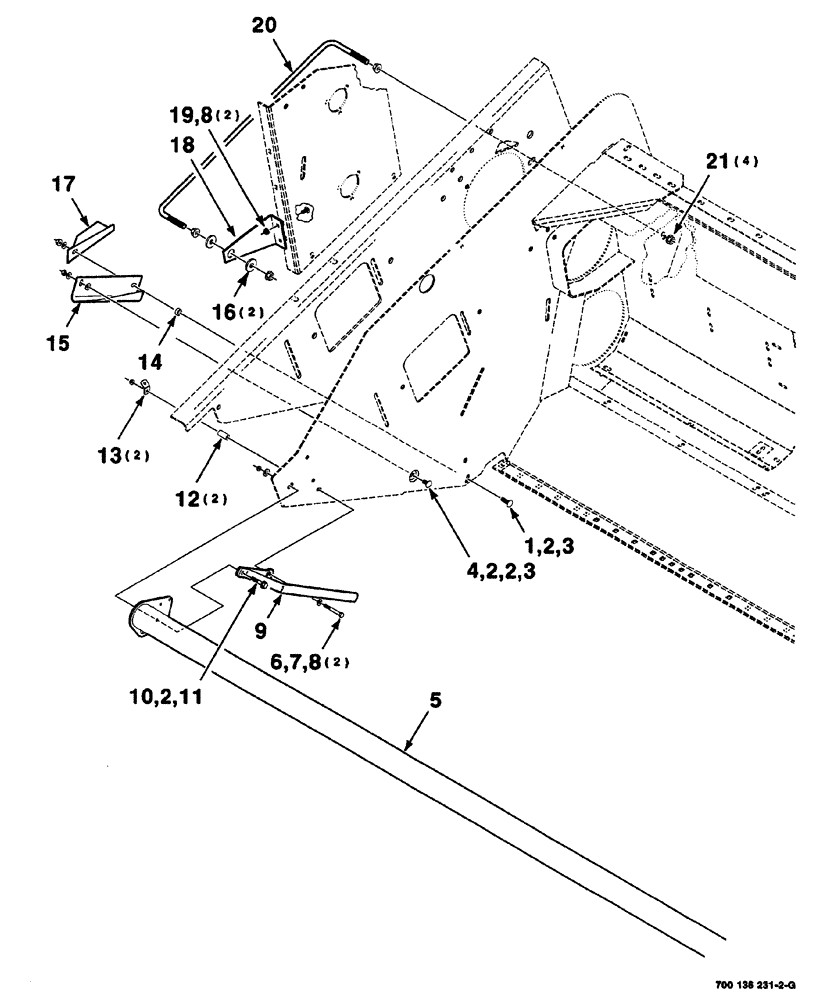

Запчасти Case IH 525 (07-012) - DIVIDERS, LEANBAR AND MOUNTING ASSEMBLIES (RIGHT) (58) - ATTACHMENTS/HEADERS

1

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

1шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

4шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

1шт.

5

700124284

BAR

lean (12 foot)

1шт.

5

700124285

BAR

lean (14 foot)

1шт.

6

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

9

700111947

DEFLECTOR

STRAP WA-deflector

1шт.

10

700711134

SCREW

hex flange, 3/8-16 x 1-3/4 GR. 8

1шт.

11

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

1шт.

12

6828107

TUBE,10.57 mm ID, 19.05 mm OD, 40 mm Length

2шт.

13

700134873

MOUNTING PARTS

ROD

2шт.

14

6212740

SPACER

1шт.

15

700136268

GUARD

COVER

1шт.

16

6223374

WASHER

2шт.

17

700111941

SHIELD

SICKLE

1шт.

18

700136256

SUPPORT

ROD mounting

1шт.

19

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

20

700134721

GUIDE

SHIELD, right

1шт.

21

329-288

FLANGE NUT,Flg, 1/2"-13, G8

4шт.
