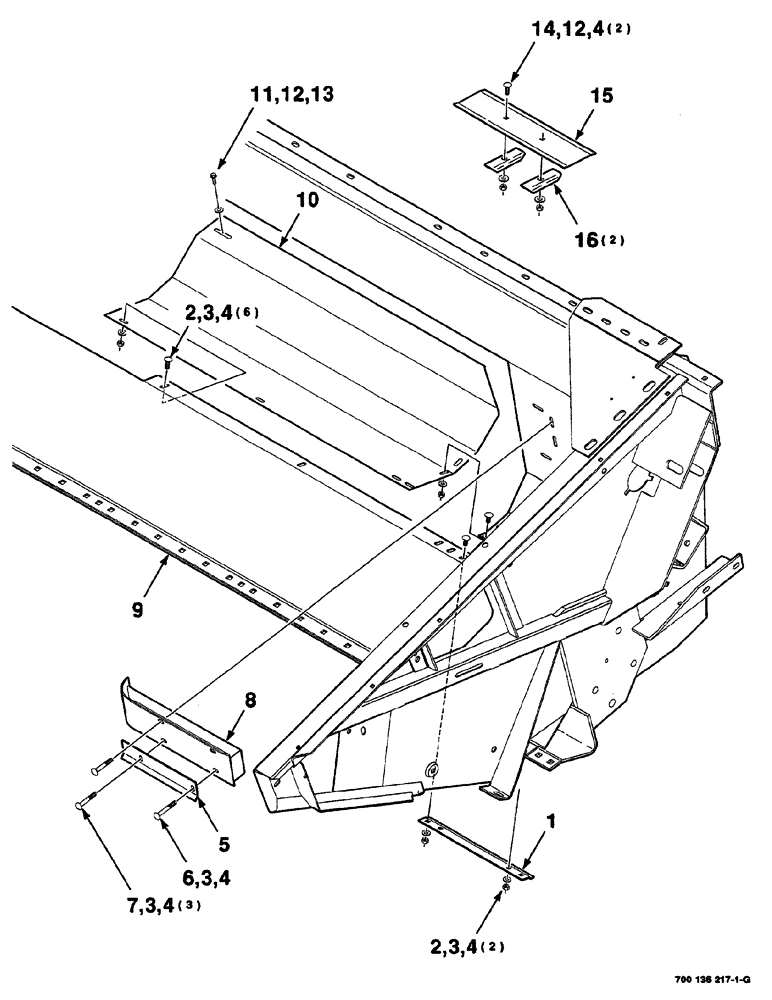

Запчасти Case IH 525 (07-002) - HEADER AUGER PAN & STRIPPER ASM, LEFT (12 FOOT) (58) - ATTACHMENTS/HEADERS

1

700136371

STRAP

retainer

1шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

3

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

12шт.

4

425-105

NUT,5/16"-18, G5

14шт.

5

700110663

ANGLE

STRIPPER, left

1шт.

6

433-540

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/2", Gr 5

round head square neck, 5/16-18 x 2-1/2

1шт.

7

433-536

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 2 1/4", Gr 5

round head square neck, 5/16-18 x 2-1/4

3шт.

8

700136342

STRIPPER

WA-left 12 foot

1шт.

9

700136236

FRAME

HEADER WA-12 foot

1шт.

10

700124320

PAN

AUGER, left

1шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

1шт.

12

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

wide plain, 5/16

3шт.

13

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

1шт.

14

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

2шт.

15

700136375

PAN

filler

1шт.

16

700136368

CLIP

retainer

2шт.
