(06-012) - AUGER AND MOUNTING ASSEMBLIES

Запчасти Case IH 525 (06-012) - AUGER AND MOUNTING ASSEMBLIES (58) - ATTACHMENTS/HEADERS

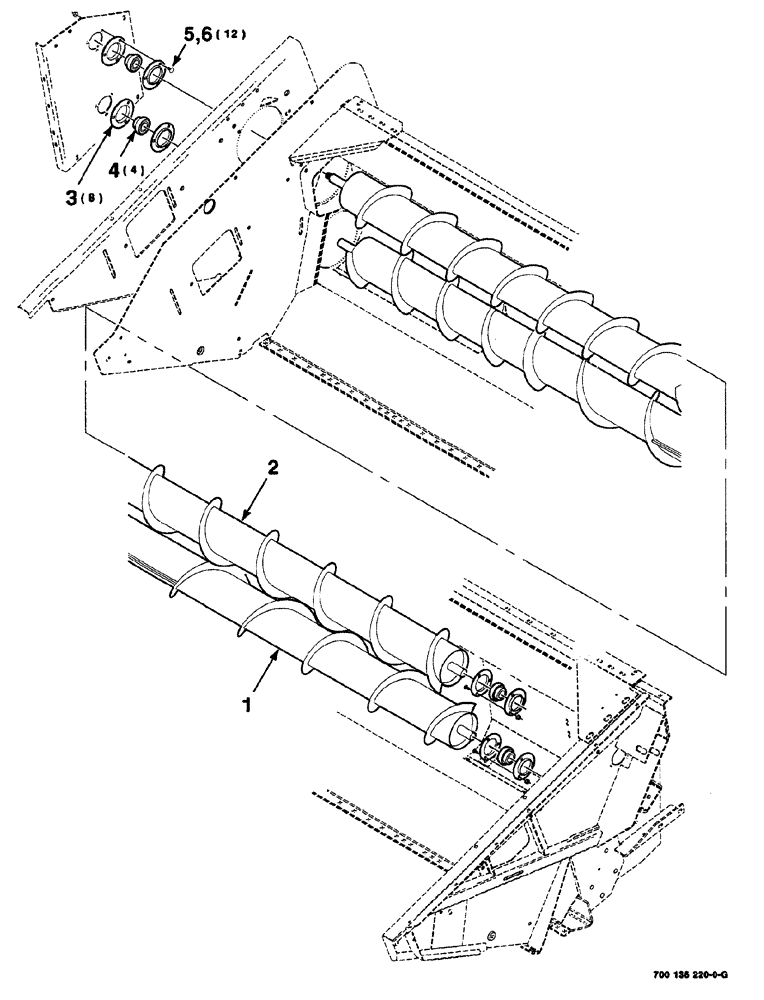

Схема запчастей Case IH 525 - (06-012) - AUGER AND MOUNTING ASSEMBLIES (58) - ATTACHMENTS/HEADERS
4
5
6
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700124893

AUGER

WA-lower (12 foot)

1шт.

1

700124895

AUGER

WA-lower (14 foot)

1шт.

2

700150411

AUGER

WA-upper (12 foot)

1шт.

2

700150412

AUGER

WA-upper (14 foot)

1шт.

3

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

BEARING

8шт.

4

619737R91

BEARING ASSY,31.76mm ID x 62mm OD x 18mm W

spherical

4шт.

5

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

12шт.

6

231-5146

FLANGE NUT,3/8"-16

12шт.
