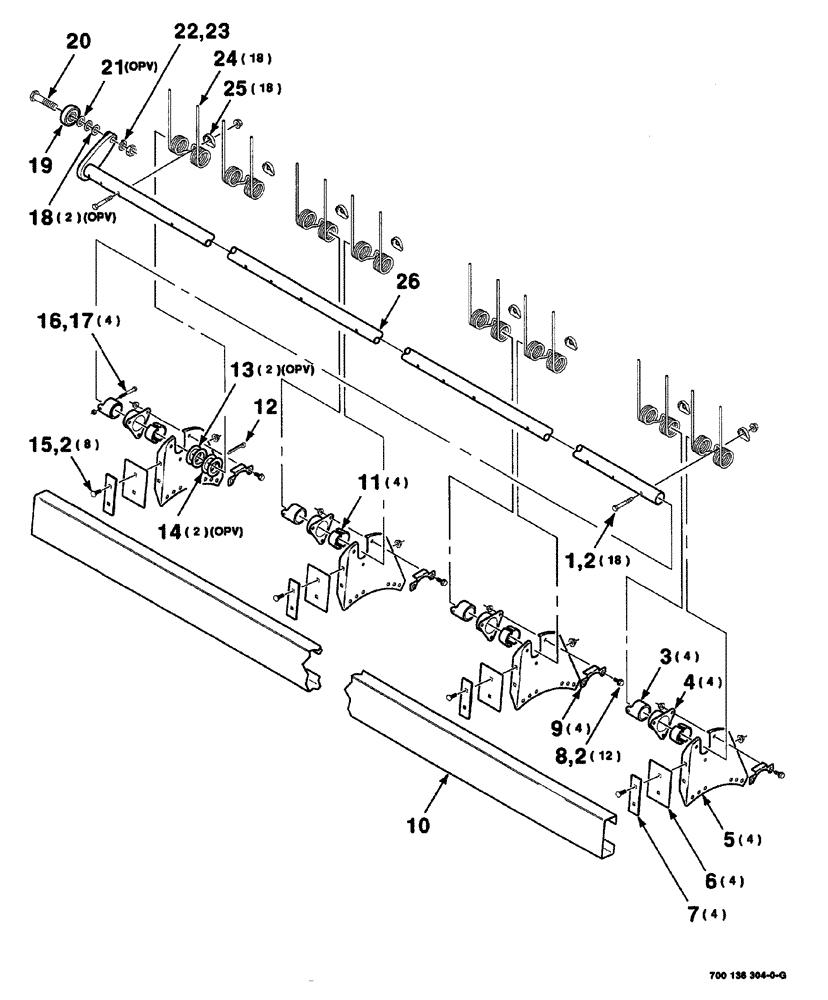

Запчасти Case IH 525 (06-004) - REEL BAT AND TINE TUBE ASSEMBLY (12 FOOT) (58) - ATTACHMENTS/HEADERS

1

426-532

BOLT,Hex, 5/16" - 18 x 2", Gr 8

hex, 5/16-18 x 2 GR. 8

18шт.

2

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

38шт.

3

6105159

NYLON BEARING,1.75"

TINE

4шт.

4

700708643

BEARING HOUSING

BEARING

4шт.

5

700114555

SUPPORT

BEARING

4шт.

6

700114544

LARGE PLATE

PLATE, LARGE REEL

4шт.

7

700114543

RETAINER

4шт.

8

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

9

6831986

COVER

BEARING

4шт.

10

700124067

BAT

REEL

1шт.

11

700708642

BEARING HALF

BEARING half

4шт.

12

432-1632

COTTER PIN,1/4" x 2"

1/4" x 2"

1шт.

13

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

BUSHING narrow rim machinery, 1-3/8 x 14 gauge

2шт.

14

195-2139

WASHER,36.52mm ID x 57.15mm OD x 2.03mm Thk

BUSHING narrow rim machinery, 1-3/8 x 18 gauge

2шт.

15

111-237

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5

8шт.

16

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

17

232-4114

LOCK NUT,1/4"-20, GC

hex top, 1/4-20 GR B

4шт.

18

52233

BUSHING

narrow rim machinery, 5/8 x 14 gauge

2шт.

19

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.

20

8701005

SPECIAL BOLT,Hex, 5/8" - 18 x 2 1/4", Gr 5

SCREW hex cap, 5/8-18 x 2-1/4

1шт.

21

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

narrow rim machinery, 5/8 x 18 gauge

1шт.

22

492-11062

BEARING WASHER,5/8"

1шт.

23

425-1510

JAM NUT,Jam, 5/8"-18, G5

Hex

1шт.

24

7895642

TINE

TINE- double

18шт.

25

261024

CLIP

TINE

18шт.

26

6805816

TUBE

WA-TINE, 12 foot "A"

1шт.
