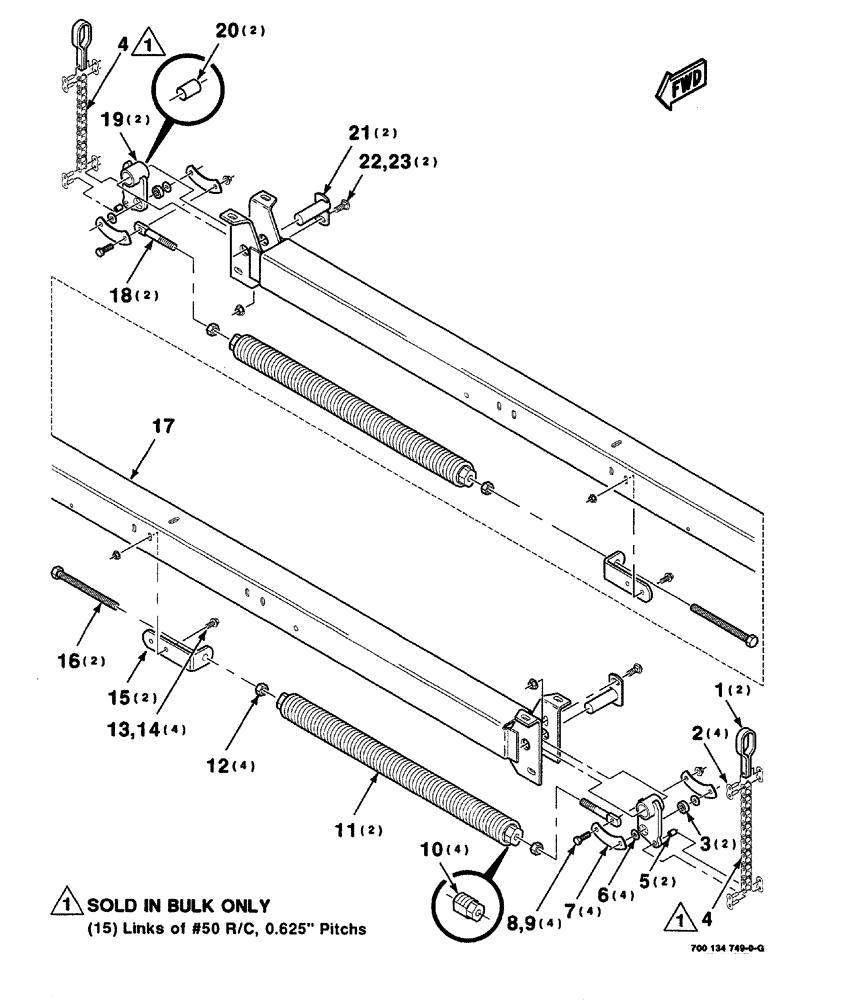

Запчасти Case IH 525 (05-012) - HAY CONDITIONER SPRING ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

6835896

STRAP

2шт.

2

47530

LINK, CONNECTING

#50

4шт.

3

700706189

BALL BEARING,8mm ID x 22mm OD x 7mm W

cylindrical

2шт.

4

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

#50 roller (10 foot bulk)

1шт.

5

700118104

SPACER

2шт.

6

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

7

700119865

LINK

4шт.

8

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

9

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

4шт.

10

287805

PLUG

spring

4шт.

Part of Ref. 11 ASSY. part number 700124666

1шт.

11

700124666

SPRING,23" L

ASSEMBLY (Includes: Ref. 10)

2шт.

12

425-108

NUT,1/2" - 13, Gr 5

4шт.

13

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

15

700119866

BRACKET

MOUNTING spring

2шт.

16

113-2479

BOLT,Hex, 1/2" - 13 x 6", Gr 5, Full Thd

2шт.

17

700134750

CHANNEL

WA

1шт.

18

700119868

STUD

2шт.

19

700127417

CAM

ASSEMBLY (Includes: Ref. 20)

2шт.

20

740803

BUSHING

OILITE

2шт.

Part of Ref. 19 ASSY. part number 700127417

1шт.

21

6831069

PIN

WA

2шт.

22

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

2шт.

23

231-5146

FLANGE NUT,3/8"-16

2шт.
