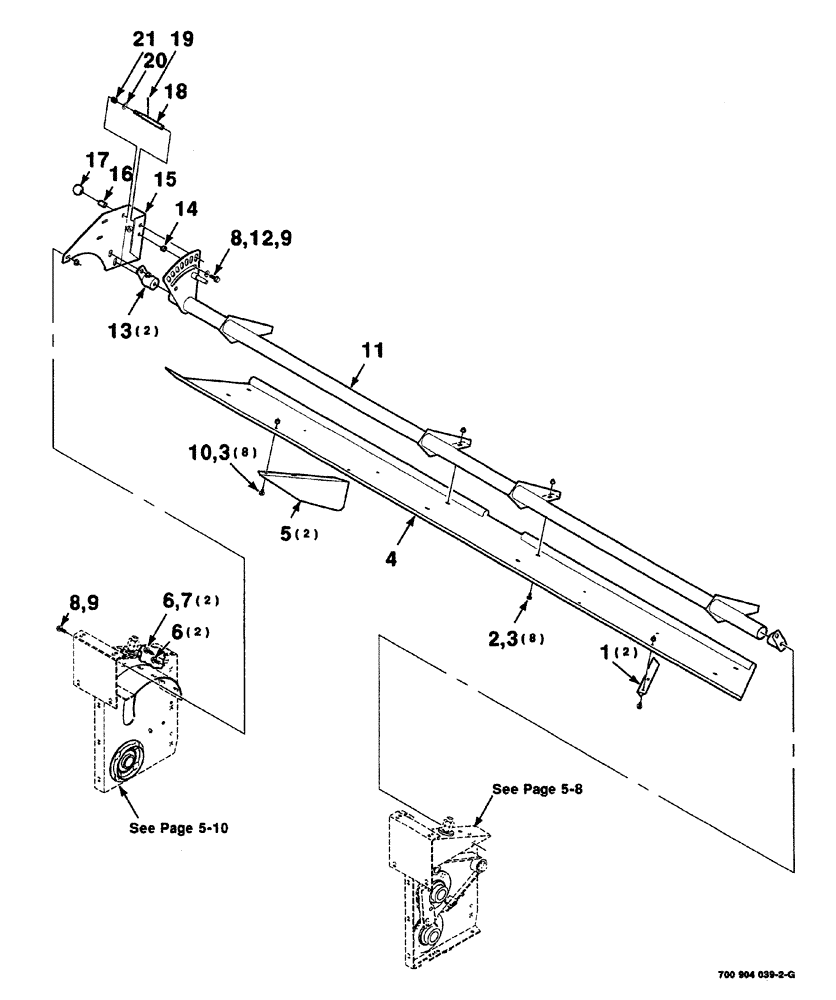

Запчасти Case IH 525 (05-006) - HAY CONDITIONER ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

700110907

FIN

left

2шт.

2

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

8шт.

3

232-5315

FLANGE NUT,Flg, 5/16"-18

hex flange top lock, 5/16-18 GR/G

16шт.

4

700134756

SHIELD

1шт.

5

700110909

FIN

right

2шт.

6

700710984

SCREW,Hex Flg, 1/2" x 1 1/4", G8 NC

4шт.

7

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

2шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

2шт.

9

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

2шт.

10

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

8шт.

11

700134740

PIPE

WA

1шт.

12

496-81010

WASHER

hardened wide plain, 3/8

1шт.

13

700134745

STRAP

WA

2шт.

14

6489231

SPACER

1шт.

15

700134754

SUPPORT

WA

1шт.

16

6595516

SPACER

1шт.

17

721258

KNOB

1шт.

18

700134748

PIN

1шт.

19

432-1016

COTTER PIN,5/32" x 1"

5/32" x 1"

1шт.

20

95-81100

WASHER,33/64" x 7/8" x .049"

BUSHING narrow rim machinery, 1/2 x 18 gauge

1шт.

21

700703267

COMPRESSION SPRING

1шт.
