(02-034) - U-JOINT ASSEMBLY (LOWER-12 FOOT)

Запчасти Case IH 525 (02-034) - U-JOINT ASSEMBLY (LOWER-12 FOOT) (58) - ATTACHMENTS/HEADERS

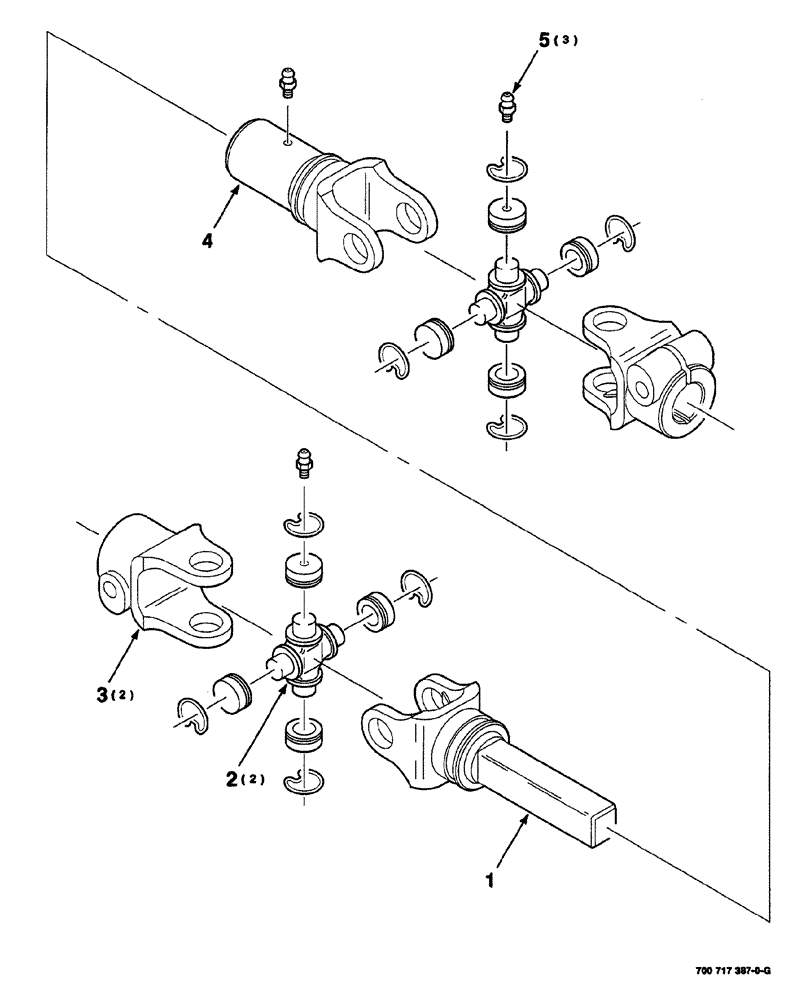

Схема запчастей Case IH 525 - (02-034) - U-JOINT ASSEMBLY (LOWER-12 FOOT) (58) - ATTACHMENTS/HEADERS
4
2
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700718305

YOKE

UNIVERSAL JOINT YOKE AND SHAFT

1шт.

2

700711843

FLEXIBLE JOINT

KIT cross and bearing (Includes: Ref. 5)

2шт.

3

757716

CLAMP

YOKE

2шт.

4

700708949

FORK

YOKE slip

1шт.

5

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

3шт.

Part of KIT, part number 700711843

1шт.
