(02-030) - U-JOINT ASSEMBLY (TIMING)

Запчасти Case IH 525 (02-030) - U-JOINT ASSEMBLY (TIMING) (58) - ATTACHMENTS/HEADERS

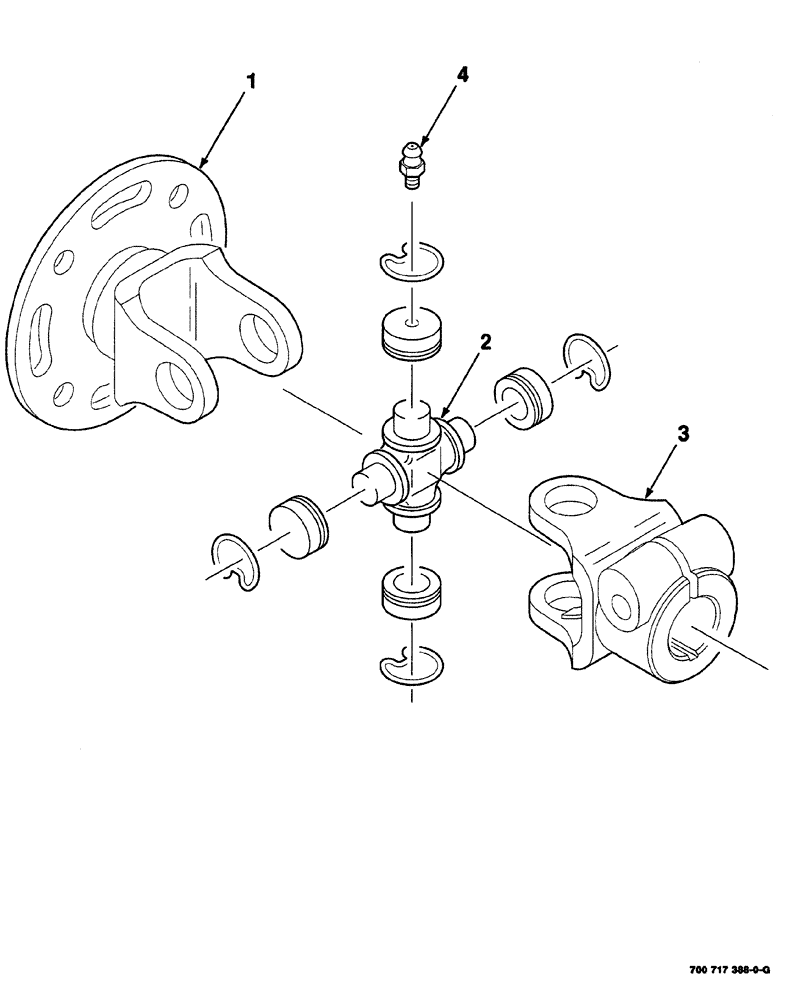

Схема запчастей Case IH 525 - (02-030) - U-JOINT ASSEMBLY (TIMING) (58) - ATTACHMENTS/HEADERS
1
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700717388

YOKE

UNIVERSAL JOINT YOKE ASSEMBLY COMPLETE

1шт.

1

700713523

FORK

YOKE AND FLANGE

1шт.

2

700711843

FLEXIBLE JOINT

KIT cross and bearing

1шт.

3

700705535

YOKE

YOKE

1шт.

4

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.
