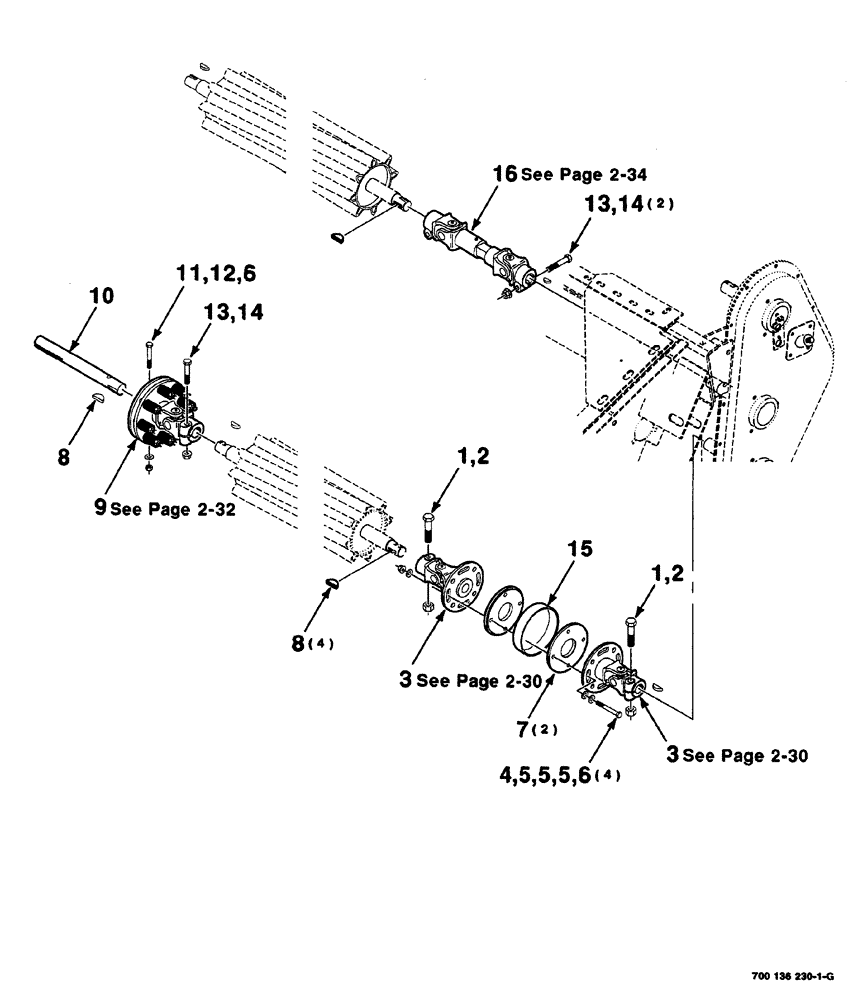

Запчасти Case IH 525 (02-028) - HAY CONDITIONER DRIVE ASSEMBLY (12 FOOT) (58) - ATTACHMENTS/HEADERS

1

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

hex, 5/8-11 x 2-3/4

2шт.

2

425-1010

NUT,5/8"-11, G5

2шт.

3

700717388

YOKE

UNIVERSAL JOINT YOKE timing

2шт.

4

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

5

496-81010

WASHER

hardened wide plain, 3/8

12шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

hex flange top lock, 3/8-16 GR/G

5шт.

7

700136324

RING

2шт.

8

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

5шт.

9

700710451

CLUTCH

U-JOINT

1шт.

10

700121372

SHAFT

12 foot

1шт.

11

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

12

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

1шт.

13

703736

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5

SCREW hex cap, 1/2-13 x 2-3/4

3шт.

14

231-5348

FLANGE NUT,Flg, 1/2"-13

hex flange top lock, 1/2-13 GR/G

3шт.

15

700136326

TUBE,132.21 mm ID, 139.7 mm OD, 31 mm Length

RING

1шт.

16

700717387

YOKE

UNIVERSAL JOINT YOKE 12 foot

1шт.
