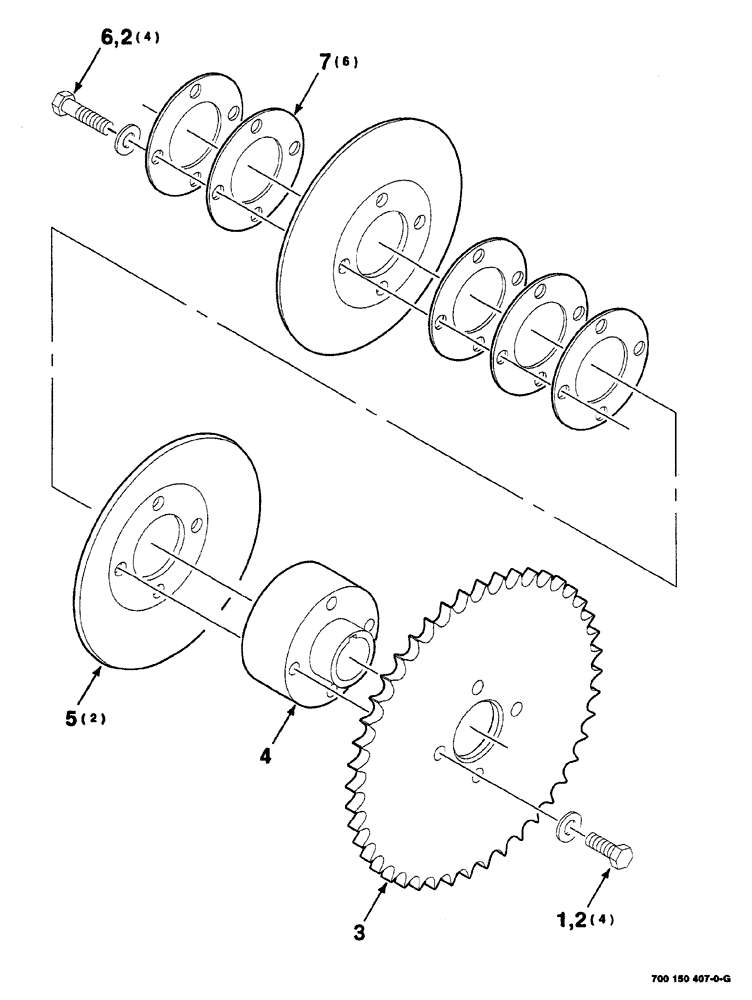

Запчасти Case IH 525 (02-026) - SHEAVE ASSEMBLY (58) - ATTACHMENTS/HEADERS

1

328-616

BOLT,Hex, 3/8" - 24 x 1", Gr 8

4шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

hardened plain, 3/8

8шт.

3

700150408

SPROCKET ASSY.

50A44

1шт.

4

700150410

HUB

1шт.

5

338244

SHEAVE

half

2шт.

6

80297R1

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8

SCREW hex cap, 3/8-24 x 1-1/2 GR. 8 NP

4шт.

7

1661923

SHIM

6шт.
