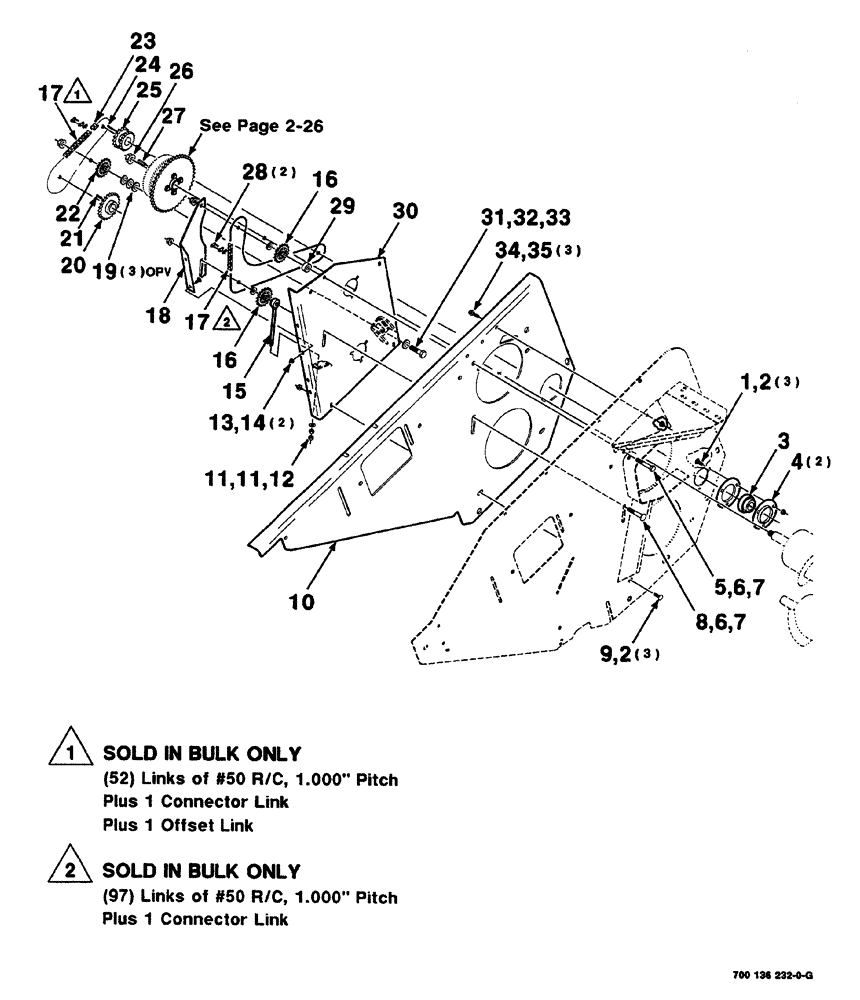

Запчасти Case IH 525 (02-024) - AUGER DRIVE ASSEMBLY (RIGHT) (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
3шт.
2
329-286
FLANGE NUT,Flg, 3/8"-16, G8
6шт.
3
485259R91
BEARING ASSY,1.2505" ID x 72 mm OD x 1.4844"
spherical
1шт.
4
617863R1
FLANGED BEARING
BEARING
2шт.
5
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
1шт.
6
705541
WASHER,0.53" ID x 1.06" OD x 0.14" Thk
hardened plain, 1/2
2шт.
7
329-288
FLANGE NUT,Flg, 1/2"-13, G8
2шт.
8
433-848
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5
round head square neck, 1/2-13 x 3
1шт.
9
433-620
CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
3шт.
10
700136244
PANEL
right end
1шт.
11
425-106
NUT,3/8"-16, Cl 5
2шт.
12
496-11041
WASHER,13/32" x 13/16" x .065", HDN
hardened plain, 3/8
1шт.
13
433-512
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5
2шт.
14
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
15
700110653
ROD
DRAW WA
1шт.
16
7087398
DRIVE SPROCKET
IDLER, 17 tooth
2шт.
17
1791D
CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm
roller, 50 (10 foot bulk)
2шт.
18
700136299
SUPPORT
IDLER
1шт.
19
52233
BUSHING
narrow rim machinery, 5/8 x 14 gauge
3шт.
20
700136277
SPROCKET ASSY.
WA-26 tooth
1шт.
21
249-1
KEY
gib, 1/4 x 1 3/4
1шт.
22
631905R91
SPROCKET
IDLER, 17 tooth
1шт.
23
241-1715
LINK,15.88mm Pitch
offset
1шт.
24
761155
BUCKET TOOTH KEY
gib, 1/4 x 2
1шт.
25
700717935
SPROCKET ASSY.
50C14
1шт.
26
7775067
FLANGE NUT,Flg, 3/4"-16, G8
hex flange, 3/4-16 GR. 8
1шт.
27
O5528N
KEY
straight, 1/4 x 2-1/2
1шт.
28
47530
LINK, CONNECTING
NO. 50
2шт.
29
700110624
SPACER
SPACER
1шт.
30
700136273
PLATE
WA
1шт.
31
413-1036
BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5
hex, 5/8-11 x 2-1/4
1шт.
33
7704919
FLANGE NUT,Flg, 5/8"-11, G8
hex flange, 5/8-11 GR. 8
1шт.
34
121-237
SERRATED BOLT,Hex, 3/8" - 16 x 1 1/4, Spcl
hex flange, 3/8-16 x 1-1/4 GR. 8
3шт.
Выбрано товаров: 35
