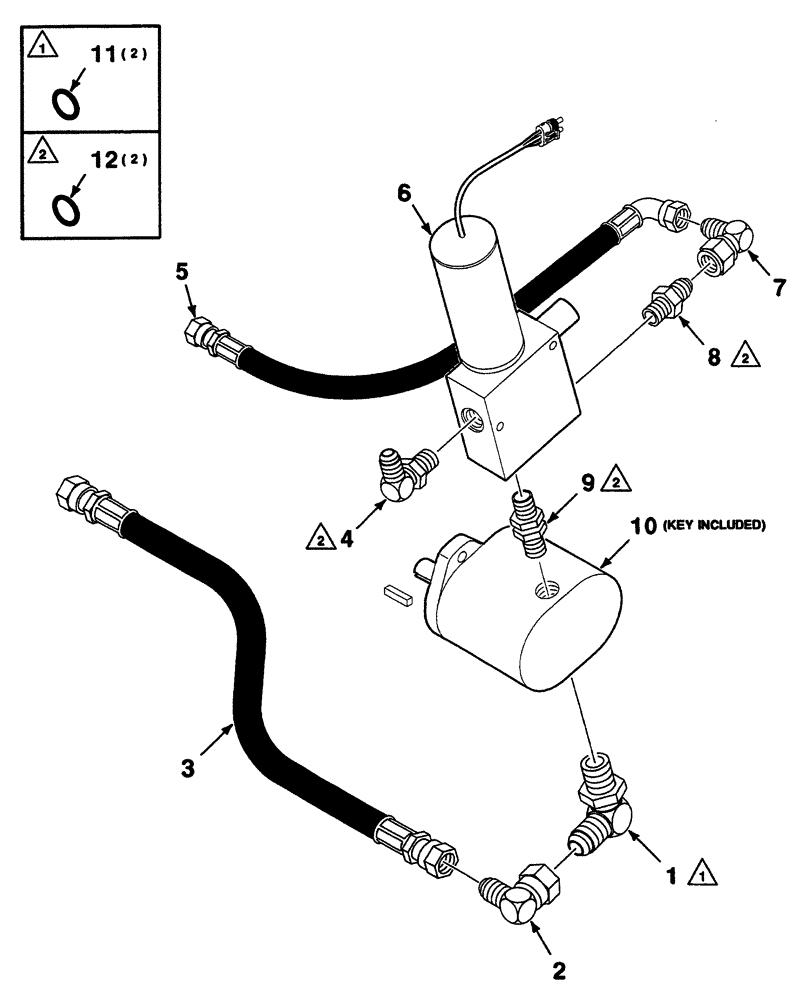

Запчасти Case IH 325 (8-06) - HYDRAULIC PUMP ASSEMBLY - RIGHT (35) - HYDRAULIC SYSTEMS

1

700718005

ELBOW

90°, Includes: Ref. 11

1шт.

2

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

3

700716648

HYDRAULIC HOSE,0.75" ID x 29.13", SAE 100R1, SAE J517, SAE J516, SAE J343

hydraulic

1шт.

4

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

90°, Includes: Ref. 12

1шт.

5

700719556

HOSE

hydraulic

1шт.

6

700717307

VALVE

flow control, see Figure 8-14

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

8

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Fitting, Str., Incl. Ref 12

1шт.

9

700717319

UNION

Includes: Ref. 12

1шт.

10

700717308

PUMP, HYDRAULIC

reel, see Figure 8-12

1шт.

11

738476

O-RING

2шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

2шт.
